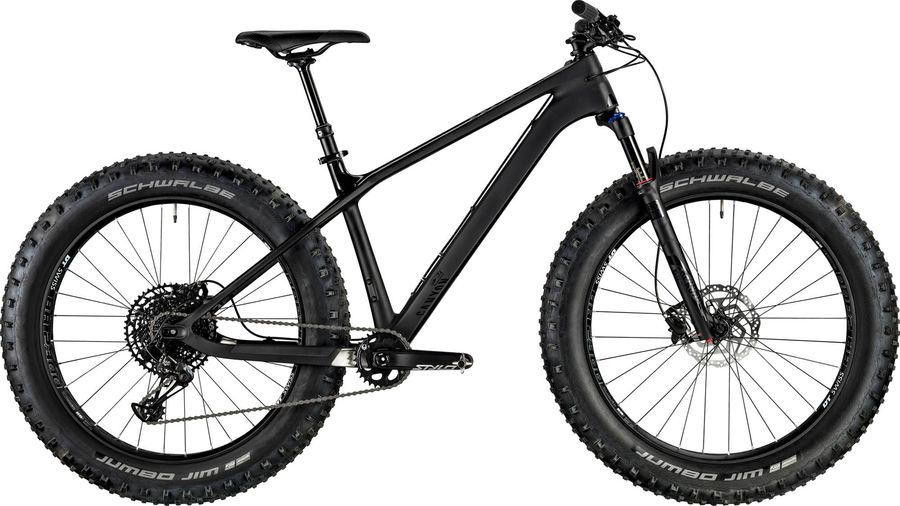

Canyon Dude CF 8.0 Trail 2019

MTB Fatbike
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
26"
Suspension type
Hardtail
Front travel
150mm
Canyon Dude CF 8.0 Trail 2019

About the Canyon Dude CF 8.0 Trail 2019

The Canyon Dude CF 8.0 Trail 2019 is a Hardtail Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Canyon Dude CF 8.0 Trail 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Selle Italia X-Base
Headset
Cane Creek 40 IPU
Seatpost
Iridium Dropper
Handlebar
Iridium Riserbar, Material: Aluminium, Rise: 15 mm
Discs
Shimano RT10, Disc Mount: Centerlock
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Truvativ Stylo 6K DUB 30T 30
Shifter
SRAM NX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Dude CF, Material: Carbon, Axle Dimension: 12 x 197 mm, Brake Mount: Post Mount
Front suspension
RockShox Bluto RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
51mm (26")
Max tire width (mm)
116
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-BLTO-RL-A4
Name
Bluto RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
26"
Wheels
Rims
DT Swiss BR 2300 SH11, Rim Material: Aluminium, Inner Width: 80 mm, Freewheel: 3 Pawl, Weight: 1260 g
Tires
Schwalbe Jumbo Jim 4.0'', Casing: Lite Skin, Compound: Addix Speedgrip, Technology: Tubeless Easy

Geometry

Size SM MD LG
a
Seat tube length
390,0
445,0
490,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
576,0
612,0
649,0
d
Head tube length
95,0
120,0
145,0
e
Head tube angle
68,5º
68,5º
68,5º
f
Rake
55,0
19,0
-18,0
g
Trail
76,0
115,0
154,0
h
Wheelbase
1111,0
1111,0
1111,0
i
Chainstay length
446,0
446,0
446,0
j
Bottom bracket drop
60,0
60,0
60,0
k
Stack height
612,0
635,0
659,0
l
Reach
402,0
432,0
462,0
m
Standover height
788,0
788,0
788,0
x
Bottom bracket height
283,0
283,0
283,0
y
Front center
672,0
672,0
672,0
