Canyon Dude CF 9.0 Unlimited 2018

MTB Fatbike
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
26"
Suspension type
Rigid
Weight
12,4 kg

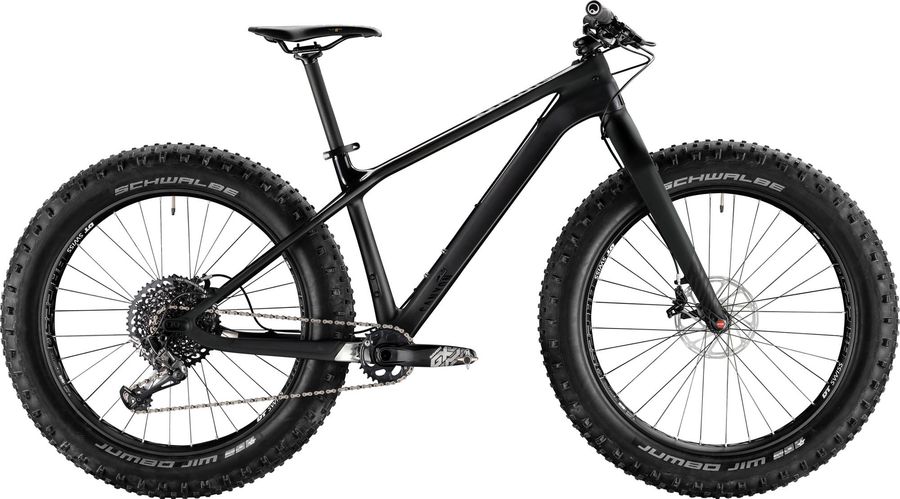

Canyon Dude CF 9.0 Unlimited 2018

About the Canyon Dude CF 9.0 Unlimited 2018

The Canyon Dude CF 9.0 Unlimited 2018 is a Rigid Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 12,4 kg.

Features

The Canyon Dude CF 9.0 Unlimited 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA30
Pedals
None included
Components
Steam
Canyon V12, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Progressive and torsionally stiff design thanks to asymmetric wall thicknesses, Compliant with Canyon Category 4 testing standards
Saddle
Fizik Tundra II
Headset
Cane Creek 40 IPU
Seatpost
Canyon VCLS S29
Handlebar
Canyon H15 Riserbar, Material: Aluminium, Rise: 15 mm
Discs
RT SRAM Centerline 160 6h
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM GX Eagle 30T 30
Shifter
SRAM GX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit GXP
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Dude CF, Material: Carbon, Axle Dimension: 12 x 197 mm, Brake Mount: Post Mount
Front suspension
Canyon Rude CF Carbon
Wheels
Rims
DT Swiss BR 2250 XD, Rim Material: Aluminium, Inner Width: 80 mm, Freewheel: Ratchet, Weight: 1180 g
Tires
Schwalbe Jumbo Jim 4.0'', Casing: Lite Skin, Compound: Addix Speedgrip, Technology: Tubeless Easy

Geometry

Size SM MD LG
a
Seat tube length
390,0
445,0
490,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
576,0
612,0
649,0
d
Head tube length
95,0
120,0
145,0
e
Head tube angle
68,5º
68,5º
68,5º
f
Rake
55,0
19,0
-18,0
g
Trail
76,0
115,0
154,0
h
Wheelbase
1111,0
1111,0
1111,0
i
Chainstay length
446,0
446,0
446,0
j
Bottom bracket drop
60,0
60,0
60,0
k
Stack height
612,0
635,0
659,0
l
Reach
402,0
432,0
462,0
m
Standover height
768,0
788,0
788,0
x
Bottom bracket height
283,0
283,0
283,0
y
Front center
672,0
672,0
672,0
