Canyon Exceed CF 5 2021

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
12,25 kg
Front travel
100mm

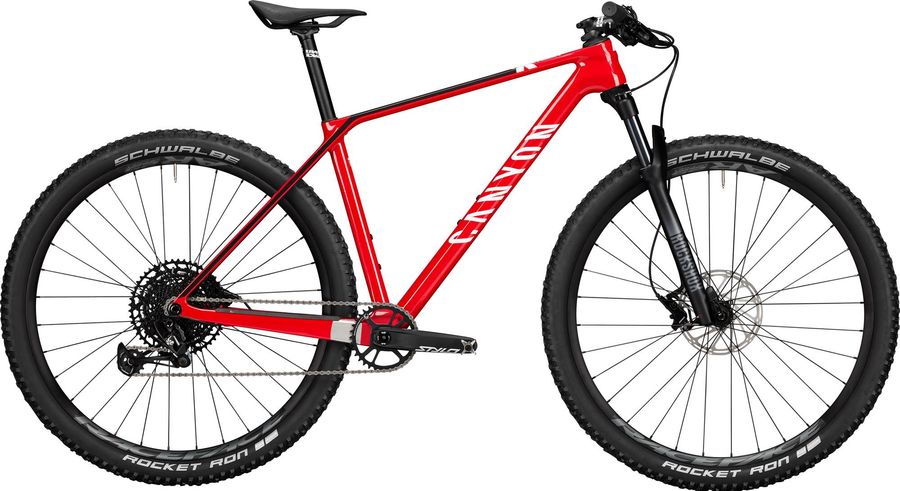

Canyon Exceed CF 5 2021

About the Canyon Exceed CF 5 2021

The Canyon Exceed CF 5 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 12,25 kg.

Features

The Canyon Exceed CF 5 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Canyon
Pedals
None included
Components
Steam
Race Face Ride
Saddle
Selle Italia Model X
Seatpost
Race Face Ride
Handlebar
Race Face Ride Rise
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Truvativ Stylo 6K DUB 34T 34
Shifter
SRAM NX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Exceed CF
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
RaceFace AR25 | Shimano MT510 SH11, Rim Material: Aluminium, Inner Width: 25 mm
Tires
Schwalbe Rocket Ron 2.25'', Compound: Performance

Geometry

Size XS SM MD LG XL
a
Seat tube length
375,0
415,0
458,0
495,0
535,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
544,0
567,0
588,0
612,0
637,0
d
Head tube length
90,0
90,0
95,0
110,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
55,0
54,0
60,0
64,0
g
Trail
85,0
85,0
86,0
79,0
75,0
h
Wheelbase
1071,0
1094,0
1115,0
1146,0
1178,0
i
Chainstay length
417,0
417,0
417,0
417,0
417,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
589,0
589,0
594,0
608,0
626,0
l
Reach
384,0
407,0
427,0
447,0
467,0
m
Standover height
773,0
795,0
820,0
846,0
875,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
661,0
683,0
704,0
735,0
767,0
