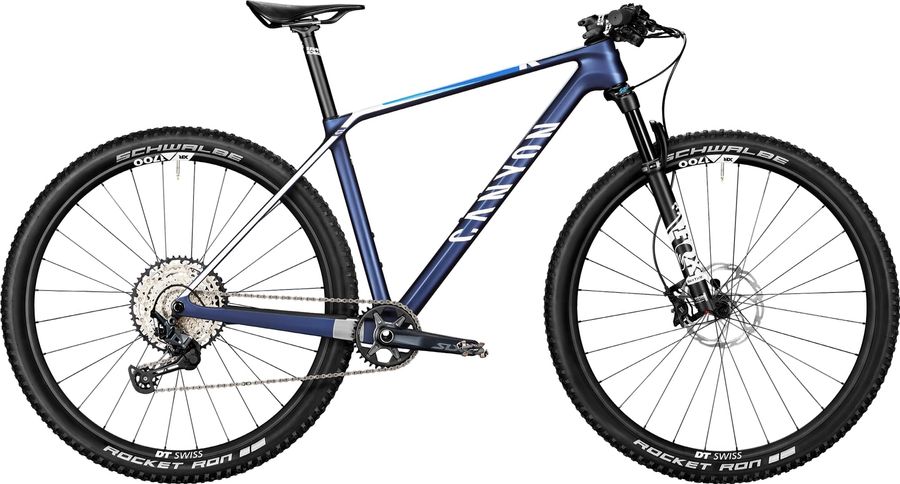

Canyon Exceed CF 6 2022
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,6 kg
Front travel
100mm
About the Canyon Exceed CF 6 2022
The Canyon Exceed CF 6 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 10,6 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Canyon push-on Grips, Our grips for confidence building control on the bars.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face Ride, Strong but light 80mm stem from Race Face.
|
|---|---|
|
Saddle
|
Selle Italia Model X, Saddle with central cut-out and flexible wings for maximum comfort. Featuring durable Soft-Tek cover for maximum durability and scratch resistance. Rail material: manganese.
|
|
Seatpost
|
Race Face Ride, Featuring the Race Face dual-bolt, adjustable head design making a saddle fit so easy., Clamp diameter: 30,9 mm
|
|
Handlebar
|
Race Face Ride Rise, Flat bars that offer great control without compromising performance., Width: 740 mm
|
|
Discs
|
Hayes D-Series 160 mm | Hayes D-Series 180 mm
|
|
Brakes
|
Shimano SLX BR-M7100
425 (BL-M7100) g
Hydraulic disc brake
2 piston
|
|
|
|
|
Crankset
|
Shimano SLX M7120, 175mm cranks with a 34 tooth chainring., Number of chainrings: 1
|
|---|---|
|
Shifter
|
Shimano SLX, 12-speed, 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
|
|
Bottom bracket
|
Shimano Pressfit BB71, Bottom bracket bearings that are built to last, no matter what you throw at them.
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M7100
252 g
|
|
|
|
|
Frame
|
Canyon Exceed CF, Our superlight, cross-country 29er hardtail gives you race DNA in an accessible carbon package.
|
|---|---|
|
Front suspension
|
Fox 32 Rhythm
|
|
Rims
|
DT Swiss XR 1700 SH12, Rear 29er XC wheel with boost thru axle., Rotor Mount: IS 6-bolt, Wheelsize: 29" | DT Swiss XR 1700, Front 29er XC wheel with boost thru axle., Rotor Mount: IS 6-bolt, Wheelsize: 29"
|
|---|---|
|
Tires
|
Schwalbe Rocket Ron 2.25'', Compound: Performance
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
375,0
|
415,0
|
458,0
|
495,0
|
535,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
544,0
|
567,0
|
588,0
|
612,0
|
637,0
|
|
d
Head tube length
|
90,0
|
90,0
|
95,0
|
110,0
|
130,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
55,0
|
55,0
|
54,0
|
55,0
|
55,0
|
|
g
Trail
|
85,0
|
85,0
|
86,0
|
85,0
|
85,0
|
|
h
Wheelbase
|
1071,0
|
1094,0
|
1115,0
|
1146,0
|
1178,0
|
|
i
Chainstay length
|
417,0
|
417,0
|
417,0
|
422,0
|
427,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
589,0
|
589,0
|
594,0
|
608,0
|
626,0
|
|
l
Reach
|
384,0
|
407,0
|
427,0
|
447,0
|
467,0
|
|
m
Standover height
|
773,0
|
795,0
|
820,0
|
846,0
|
875,0
|
|
x
Bottom bracket height
|
316,0
|
316,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
661,0
|
683,0
|
704,0
|
730,0
|
757,0
|
