Canyon Exceed CF 7 WMN 2021

Women's Bike
MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,3 kg
Front travel
100mm

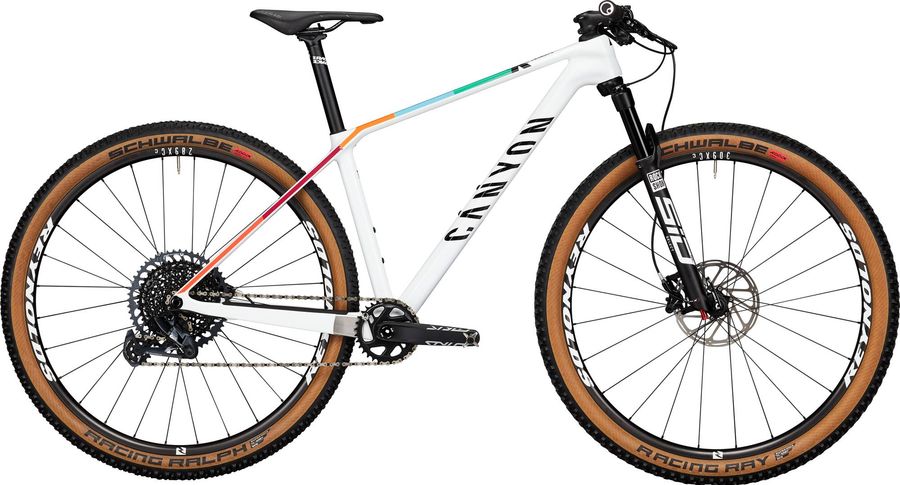

Canyon Exceed CF 7 WMN 2021

About the Canyon Exceed CF 7 WMN 2021

The Canyon Exceed CF 7 WMN 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 10,3 kg.

Features

The Canyon Exceed CF 7 WMN 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Race Face Ride
Saddle
Selle Italia SLS Lady Flow
Seatpost
Race Face Ride
Handlebar
Race Face Ride Flatbar, Material: Aluminium
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Truvativ Stylo 7K 32T 32
Shifter
SRAM GX Eagle
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Exceed CF
Front suspension
RockShox SID SL Select DebonAir 1468 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-SEL-C1
Name
SID SL Select
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1468
Wheel size
29"
Wheels
Rims
Reynolds TR 289 C XC
Tires
Schwalbe Racing Ralph SR TLE

Geometry

Size XS SM MD LG
a
Seat tube length
375,0
415,0
458,0
495,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
544,0
567,0
588,0
612,0
d
Head tube length
90,0
90,0
95,0
110,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
55,0
54,0
60,0
g
Trail
85,0
85,0
86,0
79,0
h
Wheelbase
1071,0
1094,0
1115,0
1146,0
i
Chainstay length
417,0
417,0
417,0
417,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
589,0
589,0
594,0
608,0
l
Reach
384,0
407,0
427,0
447,0
m
Standover height
773,0
795,0
820,0
846,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
y
Front center
661,0
683,0
704,0
735,0
