Canyon Exceed CF SL 6.0 Pro Race 2018

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,3 kg
Front travel
100mm

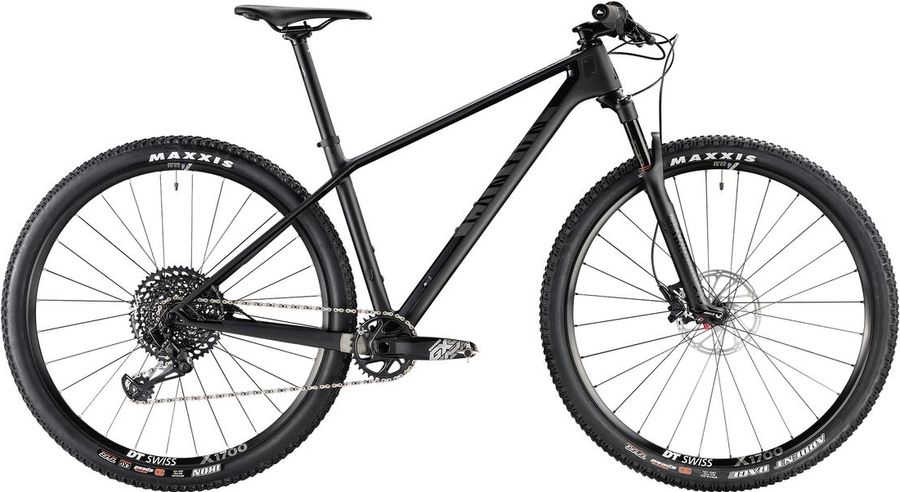

Canyon Exceed CF SL 6.0 Pro Race 2018

About the Canyon Exceed CF SL 6.0 Pro Race 2018

The Canyon Exceed CF SL 6.0 Pro Race 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include hydraulic disc brakes, tapered head tube, and remote lockout. The bike weighs approximately 10,3 kg.

Features

The Canyon Exceed CF SL 6.0 Pro Race 2018 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Canyon Race Grip, Ultralight silicone grip, Specially adapted for grip shift, Outer diameter: 32 mm black
Pedals
none included
Components
Steam
Iridium
Saddle
Selle Italia X1, Optimised race saddle shape, Anatomical cut-out for greater comfort., Weight: 270 g
Headset
Cane Creek 40 | IPU Top Cap
Seatpost
Iridium
Handlebar
Iridium Flatbar, width 720mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM GX Eagle, 12s
Shifter
SRAM GX Eagle Grip Shift, 12s
Bottom bracket
SRAM GXP Pressfit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon EXCEED CF SL, Material: Carbon, 29” frame, Internally routed cables, Tapered steerer, In frame size XS we supply the bike with 27.5” wheels
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
DT Swiss X 1700 Spline TWO, Rim Width: 22,5 mm
Tires
Maxxis Ardent Race | Maxxis Ikon

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
440,0
485,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
563,2
595,3
615,3
645,4
d
Head tube length
90,0
100,0
115,0
145,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
49,0
48,0
48,0
48,0
g
Trail
88,0
89,0
89,0
89,0
h
Wheelbase
1065,5
1098,9
1125,2
1162,7
i
Chainstay length
422,0
422,0
427,0
432,0
j
Bottom bracket drop
65,0
63,0
63,0
63,0
k
Stack height
598,9
606,3
620,3
648,4
l
Reach
390,0
420,0
436,0
458,0
m
Standover height
758,0
786,0
817,0
861,0
x
Bottom bracket height
309,0
311,0
311,0
311,0
y
Front center
652,0
684,0
706,0
738,0
