Canyon Exceed CF SL 8.0 Pro Race 2019

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,9 kg
Front travel
100mm

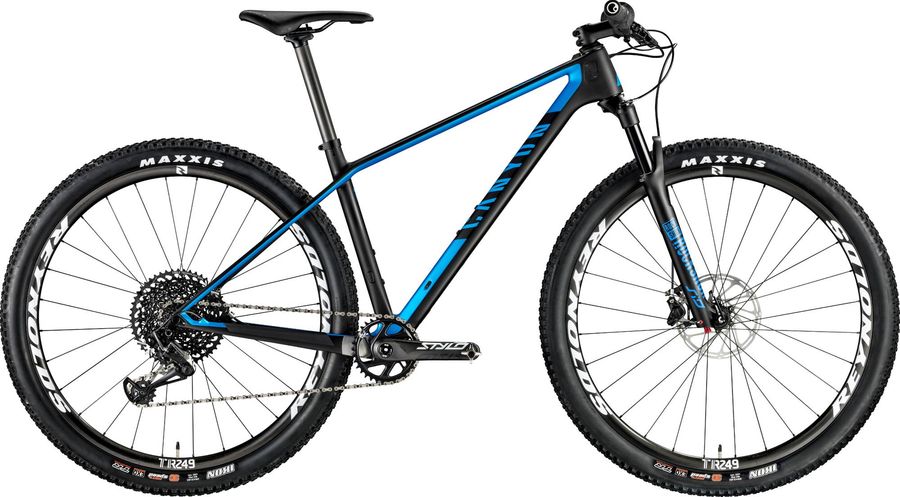

Canyon Exceed CF SL 8.0 Pro Race 2019

About the Canyon Exceed CF SL 8.0 Pro Race 2019

The Canyon Exceed CF SL 8.0 Pro Race 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 9,9 kg.

Features

The Canyon Exceed CF SL 8.0 Pro Race 2019 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V14
Saddle
Selle Italia SLS
Headset
Acros AzX 214
Seatpost
Canyon VCLS S29
Handlebar
Canyon H12 Flatbar, Material: Aluminium, Rise: 5 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
Truvativ Stylo Carbon DUB 34T 34
Shifter
SRAM X01 Eagle Gripshift 12s
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Exceed CF SL, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Front suspension
RockShox SID RLC Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RLC-A2
Name
SID RLC
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
Reynolds TR 249 XD, Rim Material: Carbon, Inner Width: 24 mm, Weight: 1050 g
Tires
MAXXIS Ikon 2.2'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
440,0
485,0
545,0
b
Seat tube angle
72,7º
72,8º
72,9º
72,9º
c
Top tube length
563,0
595,0
615,0
645,0
d
Head tube length
87,0
97,0
112,0
142,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
55,0
56,0
51,0
g
Trail
86,0
81,0
80,0
86,0
h
Wheelbase
1073,0
1106,0
1133,0
1170,0
i
Chainstay length
427,0
422,0
427,0
437,0
j
Bottom bracket drop
65,0
63,0
63,0
63,0
k
Stack height
599,0
606,0
620,0
648,0
l
Reach
390,0
420,0
436,0
458,0
m
Standover height
758,0
786,0
817,0
861,0
x
Bottom bracket height
309,0
311,0
311,0
311,0
y
Front center
654,0
692,0
713,0
740,0
