Canyon Exceed CF SLX 9.0 2020

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,3 kg
Front travel
100mm

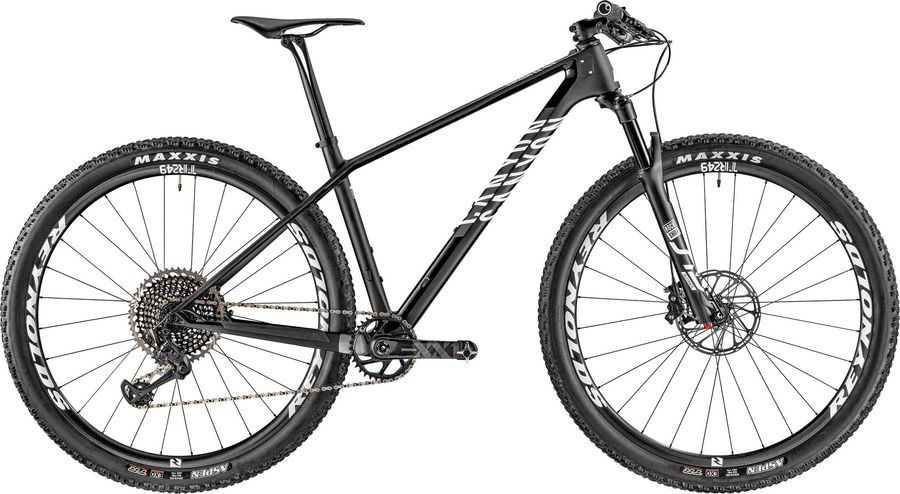

Canyon Exceed CF SLX 9.0 2020

About the Canyon Exceed CF SLX 9.0 2020

The Canyon Exceed CF SLX 9.0 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and remote lockout. The bike weighs approximately 9,3 kg.

Features

The Canyon Exceed CF SLX 9.0 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V14
Saddle
Selle Italia SLR
Seatpost
Canyon S25 VCLS 2.0 CF, Material: Carbon, Setback: -2 mm / 10 mm, Technology: VCLS 2.0 | Fliphead, Weight: 235 g
Handlebar
Canyon H20 Carbon Flatbar, Material: Carbon, Rise : 5 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM XX1 Eagle DUB 34T, Material: Carbon 34
Shifter
SRAM XX1 Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Canyon Exceed CF SLX, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Wheels
Rims
Reynolds TR 249 XD, Rim Material: Carbon, Inner Width: 24 mm, Weight: 1050 g
Tires
MAXXIS Aspen 2.25"

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
440,0
485,0
545,0
b
Seat tube angle
72,7º
72,7º
72,9º
72,9º
c
Top tube length
563,0
595,0
615,0
645,0
d
Head tube length
87,0
97,0
112,0
142,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
56,0
55,0
56,0
55,0
g
Trail
80,0
81,0
80,0
81,0
h
Wheelbase
1073,0
1106,0
1133,0
1170,0
i
Chainstay length
422,0
422,0
427,0
432,0
j
Bottom bracket drop
65,0
63,0
63,0
63,0
k
Stack height
599,0
606,0
620,0
648,0
l
Reach
390,0
420,0
436,0
458,0
m
Standover height
758,0
786,0
817,0
861,0
x
Bottom bracket height
309,0
311,0
311,0
311,0
y
Front center
659,0
692,0
713,0
745,0
