Canyon Exceed CF SLX 9.0 Pro Race LTD 2019

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,9 kg
Front travel
100mm

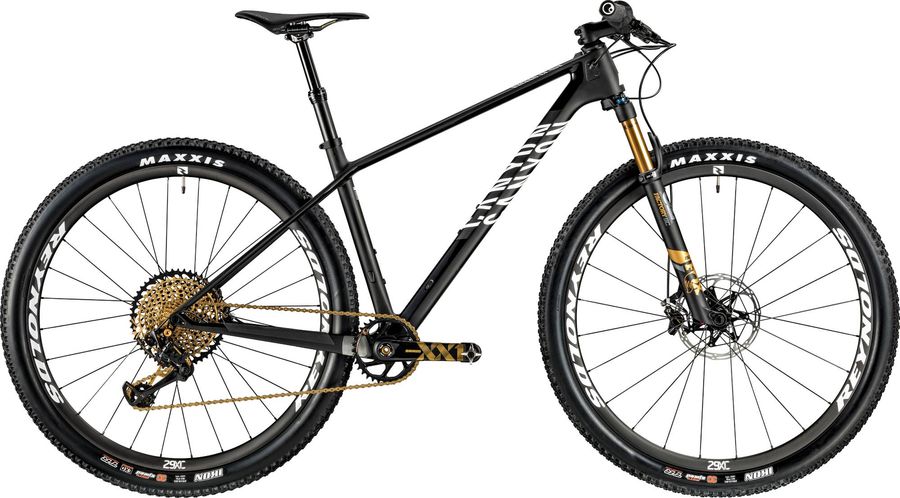

Canyon Exceed CF SLX 9.0 Pro Race LTD 2019

About the Canyon Exceed CF SLX 9.0 Pro Race LTD 2019

The Canyon Exceed CF SLX 9.0 Pro Race LTD 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 8,9 kg.

Features

The Canyon Exceed CF SLX 9.0 Pro Race LTD 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V14
Saddle
Selle Italia SLR Kit Carbonio
Headset
Acros AzX 214
Seatpost
Kind Shock Lev CI
Handlebar
Canyon H20 Carbon Flatbar, Material: Carbon, Rise : 5 mm
Discs
SRAM Centerline X Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle DUB 34T, Material: Carbon 34
Shifter
SRAM XX1 Eagle Gripshift 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Canyon Exceed CF SLX, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Front suspension
Fox 32 Factory SC
Wheels
Rims
Reynolds Blacklabel XC XD, Rim Material: Carbon, Inner Width: 25 mm, Weight: 828 g
Tires
MAXXIS Ikon 2.2'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
440,0
485,0
545,0
b
Seat tube angle
72,7º
72,7º
72,9º
72,9º
c
Top tube length
563,0
595,0
615,0
645,0
d
Head tube length
87,0
97,0
112,0
142,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
56,0
55,0
56,0
55,0
g
Trail
80,0
81,0
80,0
81,0
h
Wheelbase
1073,0
1106,0
1133,0
1170,0
i
Chainstay length
422,0
422,0
427,0
432,0
j
Bottom bracket drop
65,0
63,0
63,0
63,0
k
Stack height
599,0
606,0
620,0
648,0
l
Reach
390,0
420,0
436,0
458,0
m
Standover height
758,0
786,0
817,0
861,0
x
Bottom bracket height
309,0
311,0
311,0
311,0
y
Front center
659,0
692,0
713,0
745,0
