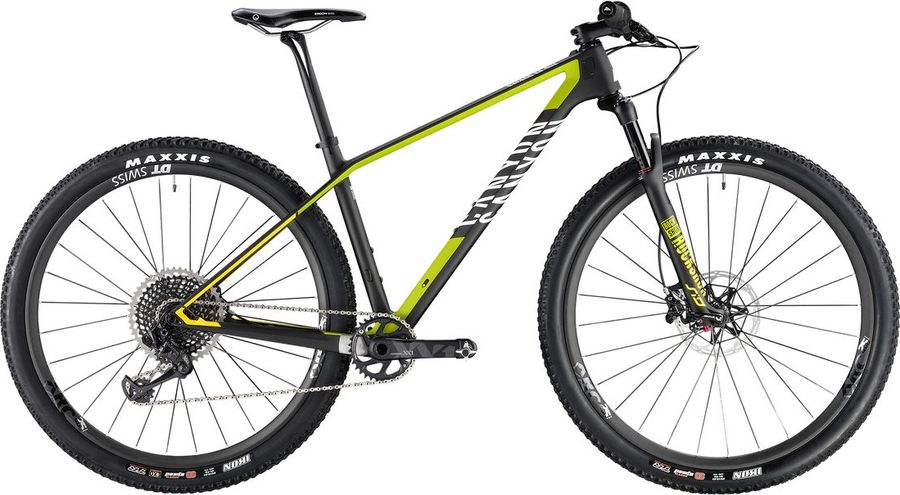

Canyon Exceed CF SLX 9.0 Pro Race Team 2018
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,5 kg
Front travel
100mm
About the Canyon Exceed CF SLX 9.0 Pro Race Team 2018
The Canyon Exceed CF SLX 9.0 Pro Race Team 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 8,5 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Canyon Race Grip, Ultralight silicone grip, Specially adapted for grip shift, Outer diameter: 32 mm black
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Canyon V14, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Hexagonal profile design for extra torsional stiffness, Compliant with Canyon Category 3 testing standards
|
|---|---|
|
Saddle
|
Ergon SM30 Evo, Ergonomically shaped, 274g,, CrMo Rails
|
|
Headset
|
Cane Creek 40 | IPU Top Cap
|
|
Seatpost
|
Canyon S25 VCLS 2.0 CF, Carbon seat post developed by Canyon, Revolutionary leaf spring design absorbs shocks for extra comfort, Meets the requirements of Canyon test class 2, Diameter: 30.9 mm
|
|
Handlebar
|
Canyon H20 Flat CF, Width: 720 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight carbon construction and balanced geometry, Compliant with Canyon Category 3 testing standards
|
|
Brakes
|
SRAM Level Ultimate
Hydraulic
317 g
|
|
|
|
|
Crankset
|
SRAM XX1 EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle Grip Shift, Carbon fibre, 12-speed, X-Actuation
|
|
Bottom bracket
|
SRAM GXP Pressfit
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Chain
|
SRAM XX1 Eagle
239 g
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Frame
|
Canyon Exceed CF SLX, Carbon frames made of multi-modulus carbon composite, Brake calliper between the seat stay and chainstay saves on weight yet increases stiffness, Extended front centre for greater safety and control when riding, Removable derailleur holder, IPU unit on the top tube, Canyon quick-release axle, Press-Fit inner bearing, Internally routed cables, Di2 compatible, Dropper Post compatible, Weight: 870 g (M)
|
|---|---|
|
Front suspension
|
RockShox SID World Cup
DebonAir
|
|
|
|
|
Rims
|
DT Swiss XRC 1200 Spline, UD Carbon rims, SPLINE® Technology, SPLINE® Hub body, DT Swiss Ratchet System
|
|---|---|
|
Tires
|
Maxxis IKON, 3C MaxxSpeed, Tubeless-Ready, 120tpi, Low rolling resistance
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
440,0
|
485,0
|
545,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
563,2
|
595,3
|
615,3
|
645,4
|
|
d
Head tube length
|
90,0
|
100,0
|
115,0
|
145,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
48,0
|
48,0
|
48,0
|
49,0
|
|
g
Trail
|
89,0
|
89,0
|
89,0
|
88,0
|
|
h
Wheelbase
|
1065,0
|
1099,0
|
1125,0
|
1163,0
|
|
i
Chainstay length
|
422,0
|
422,0
|
427,0
|
432,0
|
|
j
Bottom bracket drop
|
65,0
|
63,0
|
63,0
|
63,0
|
|
k
Stack height
|
599,0
|
606,3
|
620,3
|
648,4
|
|
l
Reach
|
390,0
|
420,0
|
436,0
|
458,0
|
|
m
Standover height
|
758,0
|
786,0
|
817,0
|
861,0
|
|
x
Bottom bracket height
|
309,0
|
311,0
|
311,0
|
311,0
|
|
y
Front center
|
651,0
|
685,0
|
705,0
|
738,0
|
