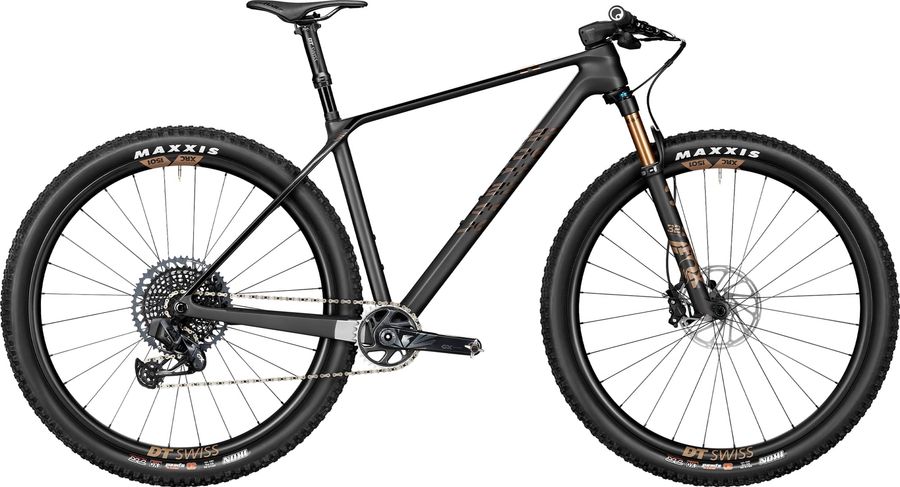

Canyon Exceed CF SLX 9 2022
Groupset
SRAM GX Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,94 kg
Front travel
100mm
About the Canyon Exceed CF SLX 9 2022
The Canyon Exceed CF SLX 9 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and remote lockout. The bike weighs approximately 9,94 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
|
|---|---|
|
Pedals
|
None included
|
|
Saddle
|
Selle Italia SLR Boost, Saddle shaped to support a more aggressive riding position.
|
|---|---|
|
Seatpost
|
DT Swiss D 232, DT Swiss' lightweight, reliable dropper post is a dream for XC riders wanting to descend as capably as they climb., Clamp diameter: 30,9 mm
|
|
Discs
|
SRAM Centerline, 160mm, Diameter: 160 mm. | SRAM Centerline, 180mm, Diameter: 180 mm.
|
|
Brakes
|
SRAM Level TLM
Hydraulic
356 g
|
|
|
|
|
Crankset
|
SRAM GX Eagle Carbon DUB 34T, Light and strong carbon crankset with 175mm cranks and 34 tooth chainring., Number of chainrings: 1
|
|---|---|
|
Shifter
|
SRAM GX Eagle AXS Contoller, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.
|
|
Bottom bracket
|
SRAM Pressfit DUB, No noise, no fuss bottom bracket from SRAM that will keep running smoothly for years.
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle AXS
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Frame
|
Canyon Exceed CF SLX, The Exceed is our hardtail weapon of choice for XC riders and racers. 29 inch wheels, 100mm forks for peak performance between the tapes or on the trails.
|
|---|---|
|
Front suspension
|
Fox 32 Factory SC
|
|
Rims
|
DT Swiss XRC 1501 Spline, These light, 30mm wide carbon rims are the super fast partner for modern XC tyres., Rotor Mount: IS 6-bolt, Wheelsize: 29" | DT Swiss XRC 1501 Spline S12, These carbon wheels with the RATCHET EXP freehub system make sure every bit of your energy is sent directly through the wheels., Rotor Mount: IS 6-bolt, Wheelsize: 29"
|
|---|---|
|
Tires
|
MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Wheelsize: 29"
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
375,0
|
415,0
|
458,0
|
495,0
|
535,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
544,0
|
567,0
|
588,0
|
612,0
|
637,0
|
|
d
Head tube length
|
90,0
|
90,0
|
95,0
|
110,0
|
130,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
55,0
|
55,0
|
54,0
|
55,0
|
55,0
|
|
g
Trail
|
85,0
|
85,0
|
86,0
|
85,0
|
85,0
|
|
h
Wheelbase
|
1071,0
|
1094,0
|
1115,0
|
1146,0
|
1178,0
|
|
i
Chainstay length
|
417,0
|
417,0
|
417,0
|
422,0
|
427,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
589,0
|
589,0
|
594,0
|
608,0
|
626,0
|
|
l
Reach
|
384,0
|
407,0
|
427,0
|
447,0
|
467,0
|
|
m
Standover height
|
773,0
|
795,0
|
820,0
|
846,0
|
875,0
|
|
x
Bottom bracket height
|
316,0
|
316,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
661,0
|
683,0
|
704,0
|
730,0
|
757,0
|
