Canyon Exceed CF SLX 9 — US 2021

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,9 kg
Front travel
100mm

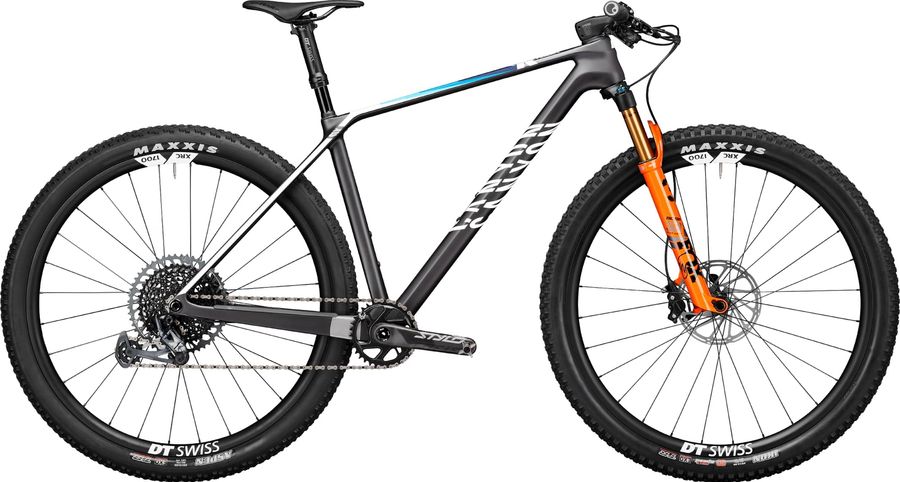

Canyon Exceed CF SLX 9 — US 2021

About the Canyon Exceed CF SLX 9 — US 2021

The Canyon Exceed CF SLX 9 — US 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 9,9 kg.

Features

The Canyon Exceed CF SLX 9 — US 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Saddle
Selle Italia SLR Boost
Seatpost
DT Swiss D 232
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole | SRAM Centerline, 180mm, 180mm SRAM Centerline rotor offers excellent braking control.
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
Truvativ Stylo Carbon DUB 34T
Shifter
SRAM X01 Eagle, 12-speed, Aimed at aggressive trail riders, Eagle X01 pairs premium materials and design for years of accurate shifts under pressure.
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Exceed CF SLX
Front suspension
Fox 32 Performance Elite
Wheels
Rims
DT Swiss XRC1700 Spline
Tires
MAXXIS Aspen 2.25" | MAXXIS Ikon Exo 2.35"

Geometry

Size XS SM MD LG XL
a
Seat tube length
375,0
415,0
458,0
495,0
535,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
544,0
567,0
588,0
612,0
637,0
d
Head tube length
90,0
90,0
95,0
110,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
55,0
54,0
55,0
55,0
g
Trail
85,0
85,0
86,0
85,0
85,0
h
Wheelbase
1071,0
1094,0
1115,0
1146,0
1178,0
i
Chainstay length
417,0
417,0
417,0
422,0
427,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
589,0
589,0
594,0
608,0
626,0
l
Reach
384,0
407,0
427,0
447,0
467,0
m
Standover height
773,0
795,0
820,0
846,0
875,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
661,0
683,0
704,0
730,0
757,0
