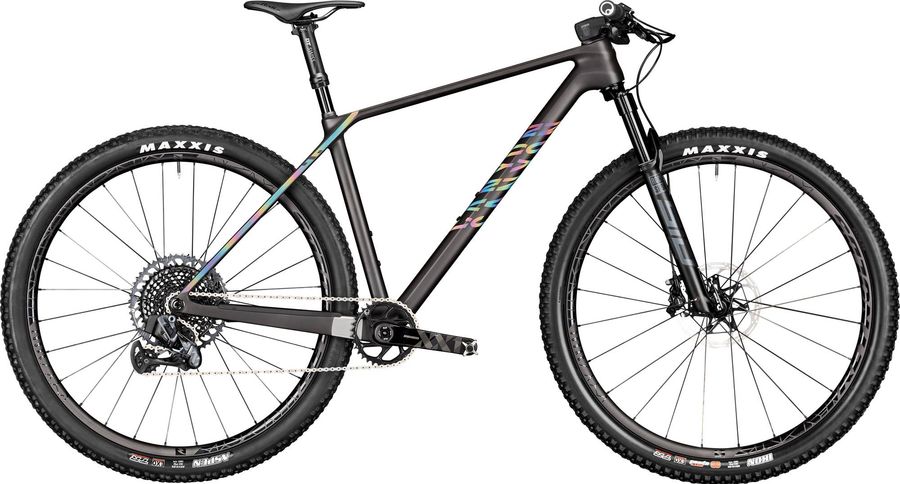

Canyon Exceed CFR LTD 2021

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,9 kg
Front travel
100mm
Canyon Exceed CFR LTD 2021

About the Canyon Exceed CFR LTD 2021

The Canyon Exceed CFR LTD 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 8,9 kg.

Features

The Canyon Exceed CFR LTD 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Saddle
Selle Italia SLR KC Boost
Seatpost
DT Swiss D 232 One
Discs
SRAM Centerline X Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle DUB 34T, Material: Carbon 34
Shifter
SRAM XX1 Eagle AXS 12s
Bottom bracket
SRAM Pressfit DUB
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Canyon Exceed CFR
Front suspension
RockShox SID SL Ultimate DebonAir 1326 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue
Damper type
Charger Race Day
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-ULT-C1
Name
SID SL Ultimate
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1326
Wheel size
29"
Wheels
Rims
Reynolds Blacklabel XC
Tires
MAXXIS Aspen 2.25"

Geometry

Size XS SM MD LG XL
a
Seat tube length
375,0
415,0
458,0
495,0
535,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
544,0
567,0
588,0
612,0
637,0
d
Head tube length
90,0
90,0
95,0
110,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
55,0
54,0
60,0
64,0
g
Trail
85,0
85,0
86,0
79,0
75,0
h
Wheelbase
1071,0
1094,0
1115,0
1146,0
1178,0
i
Chainstay length
417,0
417,0
417,0
417,0
417,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
589,0
589,0
594,0
608,0
626,0
l
Reach
384,0
407,0
427,0
447,0
467,0
m
Standover height
773,0
795,0
820,0
846,0
875,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
661,0
683,0
704,0
735,0
767,0
