Canyon Exceed CFR LTD 2022
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,92 kg
Front travel
100mm

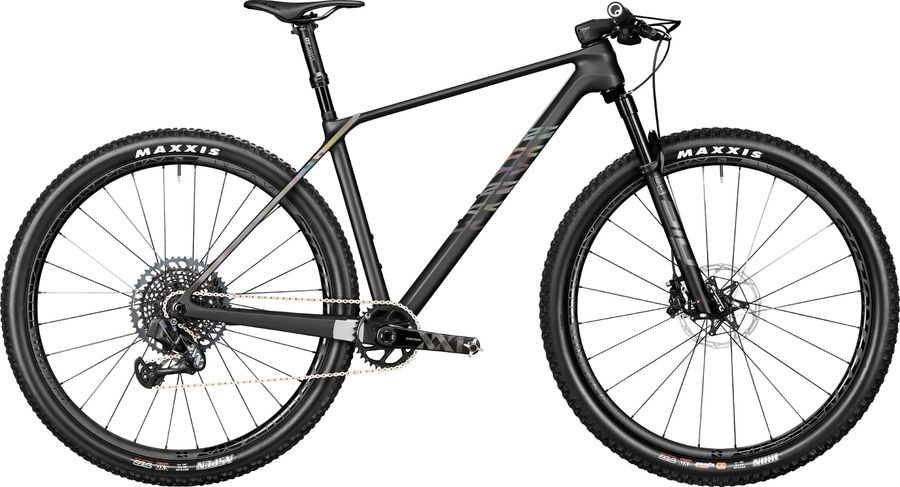

About the Canyon Exceed CFR LTD 2022
The Canyon Exceed CFR LTD 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and remote lockout. The bike weighs approximately 8,92 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
|
|---|---|
|
Pedals
|
None included
|
|
Saddle
|
Selle Italia SLR KC Boost, One of the lightest saddles available., Gender: Male
|
|---|---|
|
Seatpost
|
DT Swiss D 232 One, Light and strong dropper post with 60mm travel., Clamp diameter: 30,9 mm
|
|
Discs
|
SRAM Centerline, 160mm, Disc Mount: Centerlock | SRAM Centerline X Rounded Edges, Disc Mount: Centerlock
|
|
Brakes
|
SRAM Level Ultimate
Hydraulic
317 g
|
|
|
|
|
Crankset
|
SRAM XX1 Eagle DUB 34T, Material: Carbon
|
|---|---|
|
Shifter
|
SRAM Eagle AXS Controller, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.
|
|
Bottom bracket
|
SRAM Pressfit DUB, No noise, no fuss bottom bracket from SRAM that will keep running smoothly for years.
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle AXS
12s
|
|
|
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Frame
|
Canyon Exceed CFR, The pinnacle of hardtail XC racing. This bike is the fastest, lightest and best of the bunch. Ridden by Canyon Factory Racing riders including Mathieu van der Poel and Emily Batty.
|
|---|---|
|
Front suspension
|
RockShox SID SL Ultimate
DebonAir
1326 g
|
|
|
|
|
Rims
|
Reynolds Blacklabel XC, The lightest carbon XC wheels from Reynolds that set the bar in performance. The rim design hits the perfect balance of width, depth, and layup for ultimate durability, riding comfort, and trail hugging traction., Rotor Mount: Center Lock, Wheelsize: 29"
|
|---|---|
|
Tires
|
MAXXIS Aspen 2.25", Designed for straight line speed and trustworthy cornering, the Aspens are great low rolling resistance, lightweight, high speed tyres. | MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Wheelsize: 29"
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
375,0
|
415,0
|
458,0
|
495,0
|
535,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
544,0
|
567,0
|
588,0
|
612,0
|
637,0
|
|
d
Head tube length
|
90,0
|
90,0
|
95,0
|
110,0
|
130,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
55,0
|
55,0
|
54,0
|
55,0
|
55,0
|
|
g
Trail
|
85,0
|
85,0
|
86,0
|
85,0
|
85,0
|
|
h
Wheelbase
|
1071,0
|
1094,0
|
1115,0
|
1146,0
|
1178,0
|
|
i
Chainstay length
|
417,0
|
417,0
|
417,0
|
422,0
|
427,0
|
|
j
Bottom bracket drop
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
589,0
|
589,0
|
594,0
|
608,0
|
626,0
|
|
l
Reach
|
384,0
|
407,0
|
427,0
|
447,0
|
467,0
|
|
m
Standover height
|
773,0
|
795,0
|
820,0
|
846,0
|
875,0
|
|
x
Bottom bracket height
|
316,0
|
316,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
661,0
|
683,0
|
704,0
|
730,0
|
757,0
|
