Canyon Exceed CFR Team 2021

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,87 kg
Front travel
100mm

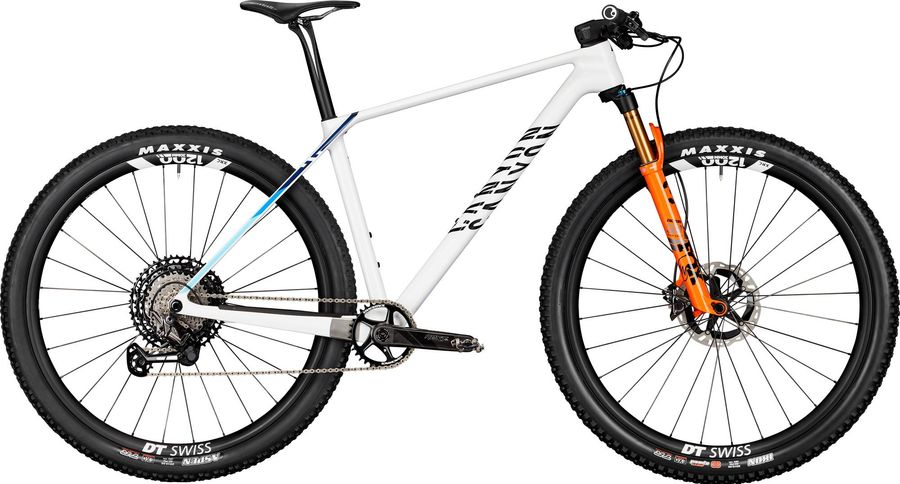

Canyon Exceed CFR Team 2021

About the Canyon Exceed CFR Team 2021

The Canyon Exceed CFR Team 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 8,87 kg.

Features

The Canyon Exceed CFR Team 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Saddle
Selle Italia SLR KC Boost
Seatpost
Canyon VCLS 2.0
Discs
Shimano RT-MT900, Disc Mount: Centerlock
Brakes
Shimano XTR BR-M9110-R 341 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
341 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Bolt fix pin/Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
4 mm
Primary color
Series color
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9110-R
Mount type
Flat mount
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin (w/o fin)
Pad standard
K04Ti Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL G5 Carbon 34T 34
Shifter
Shimano XTR M9100 12s, Clamp: I-Spec EV
Bottom bracket
Race Face Pressfit Cinch
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Exceed CFR
Front suspension
Fox 32 Factory SC
Wheels
Rims
DT Swiss XRC 1200 Spline
Tires
MAXXIS Aspen 2.25"

Geometry

Size XS SM MD LG XL
a
Seat tube length
375,0
415,0
458,0
495,0
535,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
544,0
567,0
588,0
612,0
637,0
d
Head tube length
90,0
90,0
95,0
110,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
55,0
54,0
60,0
64,0
g
Trail
85,0
85,0
86,0
79,0
75,0
h
Wheelbase
1071,0
1094,0
1115,0
1146,0
1178,0
i
Chainstay length
417,0
417,0
417,0
417,0
417,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
589,0
589,0
594,0
608,0
626,0
l
Reach
384,0
407,0
427,0
447,0
467,0
m
Standover height
773,0
795,0
820,0
846,0
875,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
661,0
683,0
704,0
735,0
767,0
