BikeWise

Canyon Exceed CFR Team 2022

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9 kg
Front travel
100mm

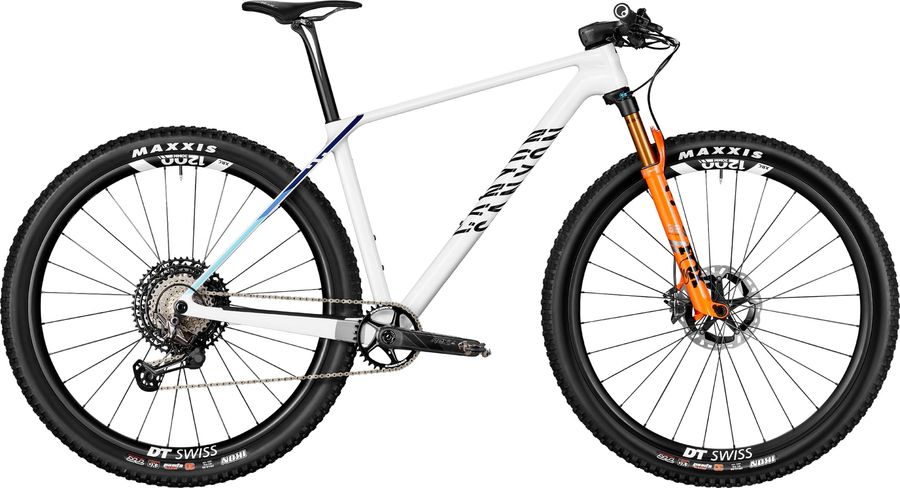

Canyon Exceed CFR Team 2022

About the Canyon Exceed CFR Team 2022

The Canyon Exceed CFR Team 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 9 kg.

Features

The Canyon Exceed CFR Team 2022 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Pedals
None included
Components
Saddle
Selle Italia SLR KC Boost, One of the lightest saddles available., Gender: Male
Seatpost
Canyon VCLS 2.0, Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing., Clamp diameter: 30,9 mm
Discs
Shimano RT-MT900, 180mm | Shimano RT-MT900
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL G5 Carbon 34T, Carbon crankset. Crank arm length: S = 170 | M - XL = 175. Chainring size: 34T.
Shifter
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Bottom bracket
Race Face Pressfit Cinch, Race Face's CINCH system provides a great, no fuss, reliable drivetrain with a quiet bottom bracket that will keep you going for years.
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Exceed CFR, The pinnacle of hardtail XC racing. This bike is the fastest, lightest and best of the bunch. Ridden by Canyon Factory Racing riders including Mathieu van der Poel and Emily Batty.
Front suspension
Fox 32 Factory SC
Wheels
Rims
DT Swiss XRC 1200 Spline, Rotor Mount: Center Lock, Wheelsize: 29"
Tires
MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Wheelsize: 29"

Geometry

Size XS SM MD LG XL
a
Seat tube length
375,0
415,0
458,0
495,0
535,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
544,0
567,0
588,0
612,0
637,0
d
Head tube length
90,0
90,0
95,0
110,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
55,0
54,0
55,0
55,0
g
Trail
85,0
85,0
86,0
85,0
85,0
h
Wheelbase
1071,0
1094,0
1115,0
1146,0
1178,0
i
Chainstay length
417,0
417,0
417,0
422,0
427,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
58,0
k
Stack height
589,0
589,0
594,0
608,0
626,0
l
Reach
384,0
407,0
427,0
447,0
467,0
m
Standover height
773,0
795,0
820,0
846,0
875,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
661,0
683,0
704,0
730,0
757,0
