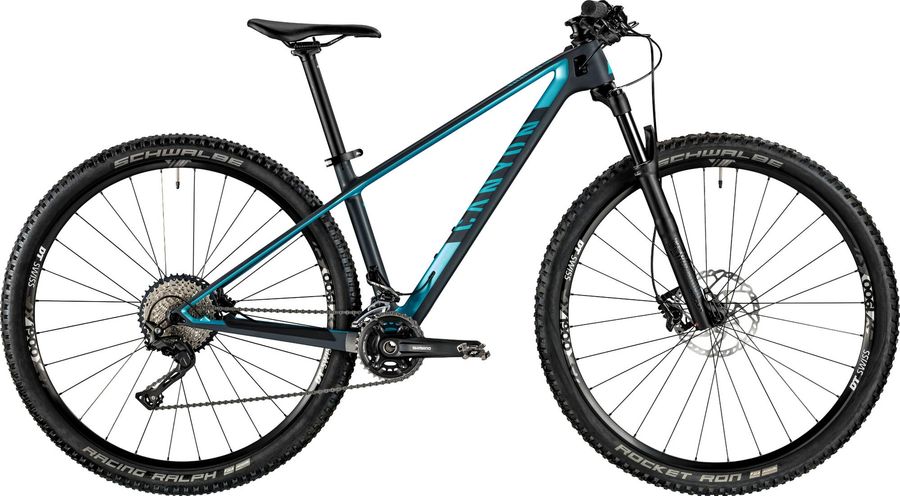

Canyon Exceed WMN CF SL 6.0 2019

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm
Canyon Exceed WMN CF SL 6.0 2019

About the Canyon Exceed WMN CF SL 6.0 2019

The Canyon Exceed WMN CF SL 6.0 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Canyon Exceed WMN CF SL 6.0 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Iridium WMN
Seatpost
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium
Discs
Shimano RT66, Disc Mount: 6-Hole
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
Shimano MT600 34/24 34/24
Shifter
Shimano SLX M7000 11s
Bottom bracket
Shimano Pressfit BB71
Front derailleur
Shimano SLX M7020
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Canyon Exceed CF SL, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss X 1900 SH11, Rim Material: Aluminium, Inner Width: 22.5 mm, Freewheel: 3 Pawl, Weight: 966 g
Tires
Schwalbe Racing Ralph 2.25'', Compound: Addix Performance

Geometry

Size XS SM MD LG
a
Seat tube length
350,0
395,0
440,0
485,0
b
Seat tube angle
72,6º
72,7º
72,8º
72,9º
c
Top tube length
541,0
569,0
601,0
621,0
d
Head tube length
90,0
87,0
97,0
112,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
45,0
51,0
55,0
56,0
g
Trail
85,0
86,0
81,0
80,0
h
Wheelbase
1040,0
1079,0
1112,0
1139,0
i
Chainstay length
423,0
433,0
428,0
433,0
j
Bottom bracket drop
48,0
65,0
63,0
63,0
k
Stack height
576,0
605,0
612,0
626,0
l
Reach
376,0
396,0
426,0
442,0
m
Standover height
727,0
764,0
792,0
823,0
x
Bottom bracket height
307,0
309,0
311,0
311,0
y
Front center
622,0
654,0
692,0
713,0
