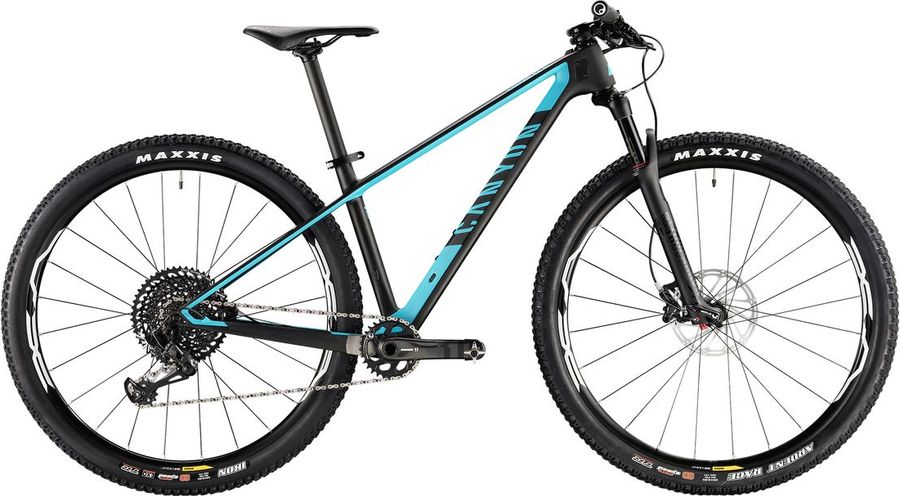

Canyon Exceed WMN CF SL 7.0 2018
The Canyon Exceed WMN CF SL 7.0 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
10,1 kg
Front travel
100mm
About the Canyon Exceed WMN CF SL 7.0 2018
The Canyon Exceed WMN CF SL 7.0 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include hydraulic disc brakes, tapered head tube, and remote lockout. The bike weighs approximately 10,1 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Ergon GA30, Ergonomic grip shape, Clamp made of composite fibre material
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Canyon V12, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Progressive and torsionally stiff design thanks to asymmetric wall thicknesses, Compliant with Canyon Category 4 testing standards
|
|---|---|
|
Saddle
|
Selle Italia SLS Lady Flow SE, Lightweight women's saddle, Anatomical form and strategic cutouts reduce pressure, Varying foam density further enhances comfort
|
|
Headset
|
Cane Creek 40 | IPU Top Cap
|
|
Seatpost
|
Canyon S29 VCLS CF, Seat post developed by Canyon with VCLS technology for greater comfort with greater stability, Compliant with Canyon Category 3 testing standards
|
|
Handlebar
|
Canyon H12 Flat AL, Width: 680 mm (XS+S) / 700 mm (M+L), Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight aluminium construction and balanced geometry, Compliant with Canyon Category 3 testing standards
|
|
Brakes
|
SRAM Level TL
Hydraulic
370 g
|
|
|
|
|
Crankset
|
SRAM X1 EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger, 12s
|
|
Bottom bracket
|
SRAM GXP Pressfit
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Canyon EXCEED CF SL, Material: Carbon, 29” frame, Internally routed cables, Tapered steerer, In frame size XS we supply the bike with 27.5” wheels
|
|---|---|
|
Front suspension
|
RockShox SID World Cup
DebonAir
|
|
|
|
|
Rims
|
Mavic XA Light
|
|---|---|
|
Tires
|
Maxxis Ardent Race | Maxxis Ikon
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
350,0
|
395,0
|
440,0
|
485,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
540,8
|
569,2
|
601,3
|
621,3
|
|
d
Head tube length
|
90,0
|
90,0
|
100,0
|
115,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
47,0
|
49,0
|
48,0
|
48,0
|
|
g
Trail
|
83,0
|
88,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1041,9
|
1071,5
|
1104,9
|
1131,2
|
|
i
Chainstay length
|
423,0
|
428,0
|
428,0
|
433,0
|
|
j
Bottom bracket drop
|
48,0
|
65,0
|
63,0
|
63,0
|
|
k
Stack height
|
575,6
|
604,9
|
612,3
|
626,3
|
|
l
Reach
|
376,0
|
396,0
|
426,0
|
442,0
|
|
m
Standover height
|
727,0
|
764,0
|
792,0
|
823,0
|
|
x
Bottom bracket height
|
307,0
|
309,0
|
311,0
|
311,0
|
|
y
Front center
|
623,0
|
652,0
|
684,0
|
706,0
|
