Canyon Exceed WMN CF SL 7.0 2019

Women's Bike
MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm

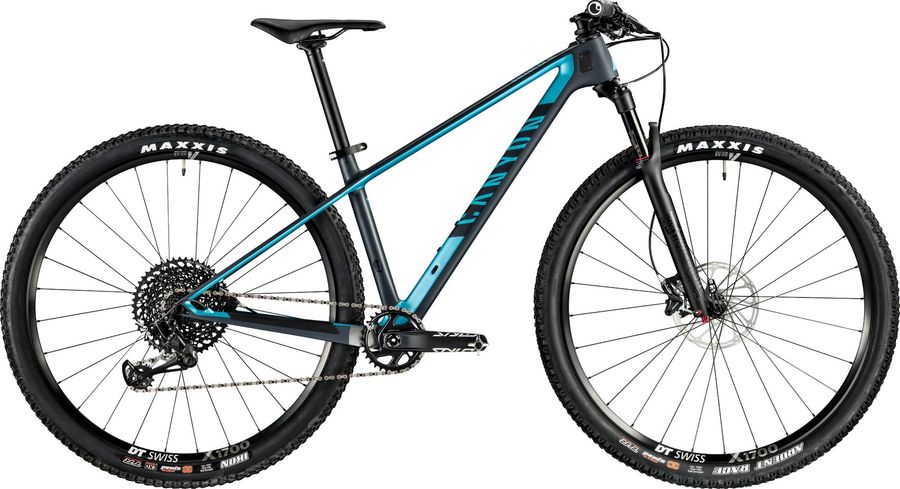

Canyon Exceed WMN CF SL 7.0 2019

About the Canyon Exceed WMN CF SL 7.0 2019

The Canyon Exceed WMN CF SL 7.0 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Canyon Exceed WMN CF SL 7.0 2019 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Iridium
Saddle
Selle Italia SLR Lady Flow
Seatpost
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Truvativ Stylo 7K 32T 32
Shifter
SRAM GX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Exceed CF SL, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
DT Swiss X 1700 XD, Rim Material: Aluminium, Inner Width: 22.5 mm, Freewheel: Ratchet, Weight: 914 g
Tires
MAXXIS Ikon 2.2'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready

Geometry

Size XS SM MD LG
a
Seat tube length
350,0
395,0
440,0
485,0
b
Seat tube angle
72,6º
72,7º
72,8º
72,9º
c
Top tube length
541,0
569,0
601,0
621,0
d
Head tube length
90,0
87,0
97,0
112,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
45,0
51,0
55,0
56,0
g
Trail
85,0
86,0
81,0
80,0
h
Wheelbase
1040,0
1079,0
1112,0
1139,0
i
Chainstay length
423,0
433,0
428,0
433,0
j
Bottom bracket drop
48,0
65,0
63,0
63,0
k
Stack height
576,0
605,0
612,0
626,0
l
Reach
376,0
396,0
426,0
442,0
m
Standover height
727,0
764,0
792,0
823,0
x
Bottom bracket height
307,0
309,0
311,0
311,0
y
Front center
622,0
654,0
692,0
713,0
