Canyon Exceed WMN CF SLX 9.0 2019

Women's Bike
MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm

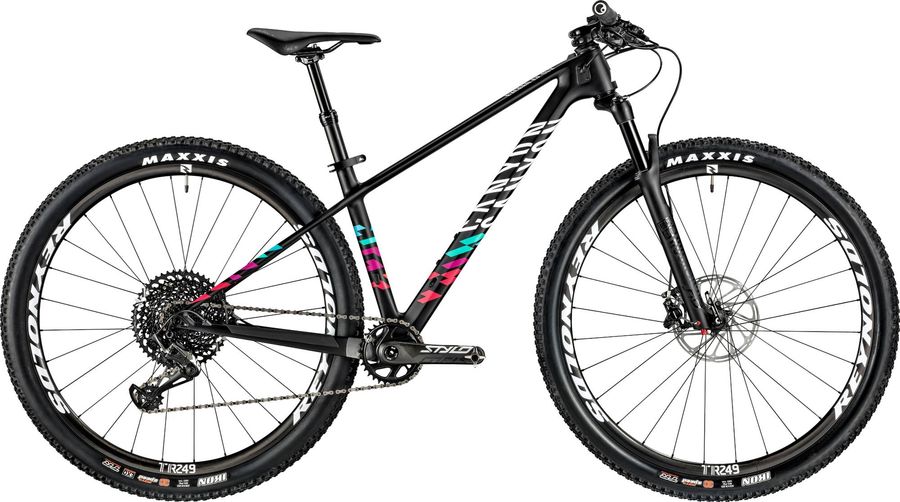

Canyon Exceed WMN CF SLX 9.0 2019

About the Canyon Exceed WMN CF SLX 9.0 2019

The Canyon Exceed WMN CF SLX 9.0 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Exceed WMN CF SLX 9.0 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V12
Saddle
Selle Italia SLS Lady Flow
Seatpost
Kind Shock Lev CI
Handlebar
Canyon H12 Flatbar, Material: Aluminium
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
Truvativ Stylo Carbon DUB 32T 32
Shifter
SRAM X01 Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Exceed CF SLX, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Front suspension
RockShox SID World Cup DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm, 220mm
Minimum rotor size
160mm
Model
FS-SID-WC-B3
Name
SID World Cup
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Reynolds TR 249 XD, Rim Material: Carbon, Inner Width: 24 mm, Weight: 1050 g
Tires
MAXXIS Ikon 2.2'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready

Geometry

Size XS SM MD LG
a
Seat tube length
350,0
395,0
440,0
485,0
b
Seat tube angle
72,6º
72,7º
72,7º
72,9º
c
Top tube length
541,0
569,0
601,0
621,0
d
Head tube length
90,0
87,0
97,0
112,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
45,0
56,0
55,0
56,0
g
Trail
85,0
80,0
81,0
80,0
h
Wheelbase
1040,0
1079,0
1112,0
1139,0
i
Chainstay length
423,0
428,0
428,0
433,0
j
Bottom bracket drop
48,0
65,0
63,0
63,0
k
Stack height
576,0
605,0
612,0
626,0
l
Reach
376,0
396,0
426,0
442,0
m
Standover height
727,0
764,0
792,0
823,0
x
Bottom bracket height
307,0
309,0
311,0
311,0
y
Front center
622,0
659,0
692,0
713,0
