Canyon Grand Canyon 5 WMN 2021

Women's Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,66 kg
Front travel
100mm

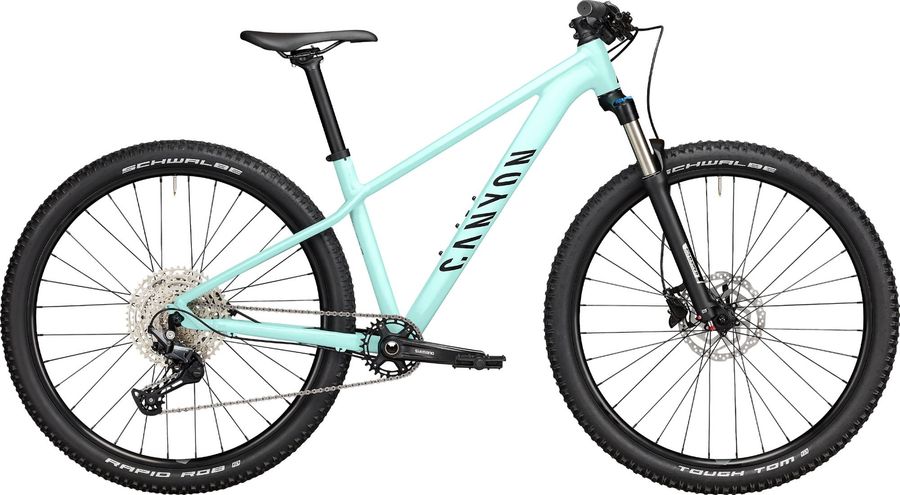

Canyon Grand Canyon 5 WMN 2021

About the Canyon Grand Canyon 5 WMN 2021

The Canyon Grand Canyon 5 WMN 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 13,66 kg.

Features

The Canyon Grand Canyon 5 WMN 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Iridium
Components
Steam
Iridium
Saddle
Iridium WMN Fitness
Seatpost
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT10, Disc Mount: Centerlock
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano MT510 30
Shifter
Shimano Deore M6100 12s
Bottom bracket
Shimano BSA BB52
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Grand Canyon WMN AL
Front suspension
SR Suntour XCR
Wheels
Rims
Iridium / Shimano TX505 SH11
Tires
Schwalbe Rapid Rob 2.25'', Casing: K-Guard

Geometry

Size XXS XS SM MD
a
Seat tube length
305,0
350,0
395,0
440,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
523,0
546,0
575,0
604,0
d
Head tube length
90,0
90,0
100,0
105,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
47,0
47,0
47,0
48,0
g
Trail
90,0
90,0
90,0
96,0
h
Wheelbase
1031,0
1057,0
1086,0
1124,0
i
Chainstay length
429,0
429,0
429,0
437,0
j
Bottom bracket drop
54,0
54,0
54,0
59,0
k
Stack height
565,0
593,0
602,0
623,0
l
Reach
363,0
378,0
404,0
427,0
m
Standover height
677,0
707,0
747,0
797,0
x
Bottom bracket height
301,0
301,0
301,0
315,0
y
Front center
608,0
634,0
663,0
694,0
