BikeWise

Canyon Grand Canyon 8 2021

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,58 kg
Front travel
120mm

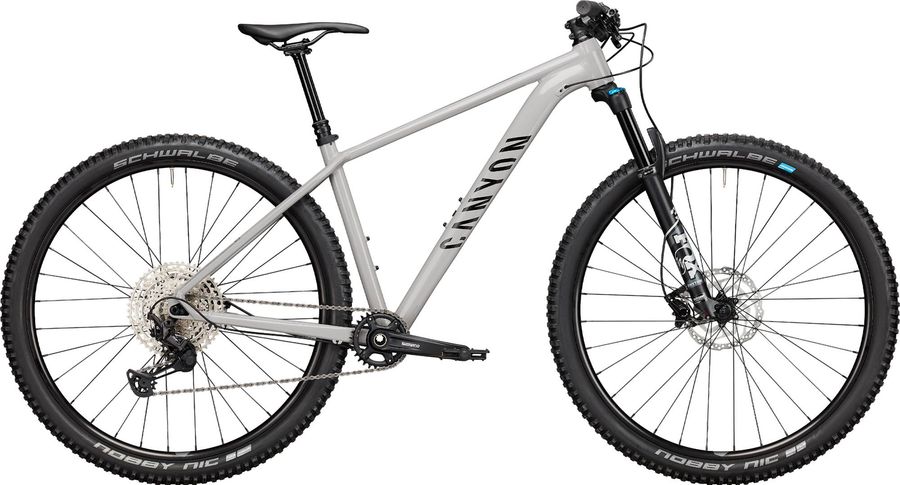

Canyon Grand Canyon 8 2021

About the Canyon Grand Canyon 8 2021

The Canyon Grand Canyon 8 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,58 kg.

Features

The Canyon Grand Canyon 8 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon
Components
Steam
Iridium
Saddle
Iridium Trail
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT10
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano M610 30T 30
Shifter
Shimano SLX M7100 12s
Bottom bracket
Shimano Pressfit BB-MT500
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Canyon Grand Canyon AL SL
Front suspension
Fox 34 Rhythm
Wheels
Rims
Alexrims MD25 | Shimano MT410-B
Tires
Schwalbe Nobby Nic 2.35'', Compound: Addix Performance

Geometry

Size XS SM MD LG XL
a
Seat tube length
350,0
395,0
440,0
485,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
567,0
587,0
615,0
639,0
667,0
d
Head tube length
90,0
100,0
100,0
115,0
145,0
e
Head tube angle
68,0º
68,0º
67,5º
67,5º
67,5º
f
Rake
44,0
44,0
55,0
55,0
55,0
g
Trail
96,0
96,0
96,0
96,0
96,0
h
Wheelbase
1085,0
1106,0
1151,0
1182,0
1218,0
i
Chainstay length
424,0
424,0
429,0
434,0
439,0
j
Bottom bracket drop
47,0
47,0
65,0
65,0
65,0
k
Stack height
588,0
597,0
627,0
641,0
668,0
l
Reach
399,0
416,0
436,0
456,0
476,0
m
Standover height
731,0
761,0
814,0
842,0
880,0
x
Bottom bracket height
308,0
308,0
309,0
309,0
309,0
y
Front center
665,0
686,0
730,0
756,0
787,0
