BikeWise

Canyon Grand Canyon 9 2022

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,26 kg
Front travel
120mm

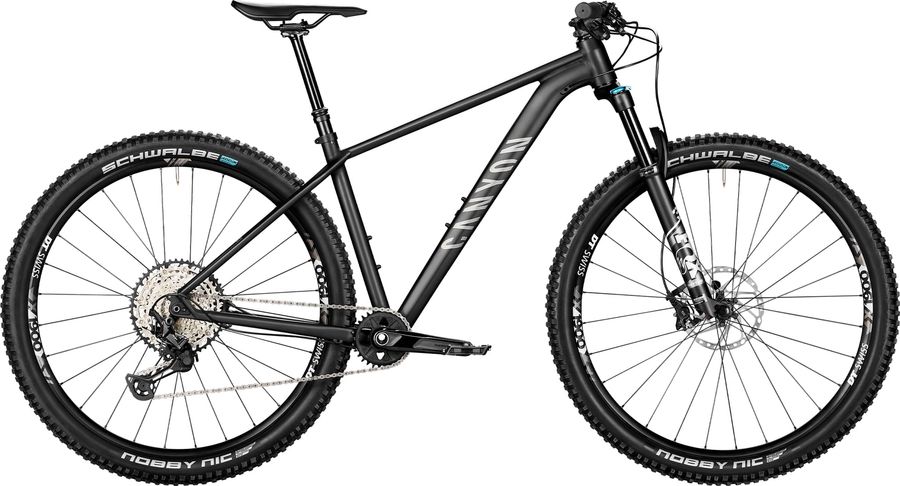

Canyon Grand Canyon 9 2022

About the Canyon Grand Canyon 9 2022

The Canyon Grand Canyon 9 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,26 kg.

Features

The Canyon Grand Canyon 9 2022 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon push-on Grips, Our grips for confidence building control on the bars.
Components
Steam
Iridium
Saddle
Iridium Trail
Seatpost
Iridium Dropper, This dropper post features 150 mm of stepless height adjustment, giving you more freedom to move around when things get steep., Clamp diameter: 30,9 mm
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT66 160 | Shimano RT66 180
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano M610 30T, Number of chainrings: 1
Shifter
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Bottom bracket
Shimano Pressfit BB-MT500
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Canyon Grand Canyon AL SL, Robust aluminium frame with optimal stiffness-to-weight ratio. Category: 3.
Front suspension
Fox 34 Rhythm
Wheels
Rims
DT Swiss M1900, Lightweight, 30 mm wide, tubeless optimised: these 29" alloy wheels are built for trail riding. With dependable Straight Pull hubs., Rotor Mount: Center Lock, Wheelsize: 29"
Tires
Schwalbe Nobby Nic SnakeSkin 29" x 2.35" MTB Tyre, Casing: Snake Skin, Compound: Evolution, Technology: Tubeless Easy

Geometry

Size XS SM MD LG XL
a
Seat tube length
350,0
395,0
440,0
485,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
567,0
587,0
615,0
639,0
667,0
d
Head tube length
90,0
100,0
100,0
115,0
145,0
e
Head tube angle
68,0º
68,0º
67,5º
67,5º
67,5º
f
Rake
44,0
44,0
55,0
55,0
55,0
g
Trail
96,0
96,0
96,0
96,0
96,0
h
Wheelbase
1085,0
1106,0
1151,0
1182,0
1218,0
i
Chainstay length
424,0
424,0
429,0
434,0
439,0
j
Bottom bracket drop
47,0
47,0
65,0
65,0
65,0
k
Stack height
588,0
597,0
627,0
641,0
668,0
l
Reach
399,0
416,0
436,0
456,0
476,0
m
Standover height
731,0
761,0
814,0
842,0
880,0
x
Bottom bracket height
308,0
308,0
309,0
309,0
309,0
y
Front center
665,0
686,0
730,0
756,0
787,0
