Canyon Grand Canyon AL 4.0 2020

MTB Cross Country

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

27,5" / 29"

Suspension type

Hardtail

Weight

14 kg

Front travel

100mm

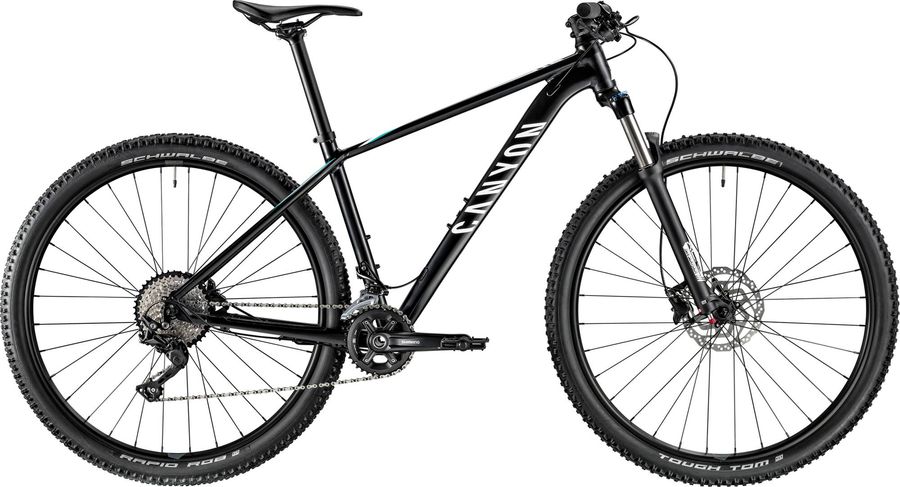

About the Canyon Grand Canyon AL 4.0 2020

The Canyon Grand Canyon AL 4.0 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 14 kg.

Features

The Canyon Grand Canyon AL 4.0 2020 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Iridium

Components
Steam	Iridium
Saddle	Iridium Fitness
Headset	Femin FP-H863
Seatpost	Iridium
Handlebar	Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs	Shimano RT10, Disc Mount: Centerlock
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	Shimano MT500 36/26 36/26
Shifter	Shimano Deore M6000 10s
Bottom bracket	Shimano BSA BB52
Front derailleur	Shimano Deore M6020
Rear derailleur	Shimano Deore RD-M6000-GS GS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 42T Lower pulley min 42T Model RD-M6000-GS P axle finish Painted P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage GS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 41T
Chain	KMC X10
Cassette	Shimano Deore CS-HG500-10

Frameset
Frame	Canyon Grand Canyon AL, Material: Aluminium 6061, Axle Dimension: 9 x 135 mm, Brake Mount: Post Mount 160
Front suspension	SR Suntour XCR

Wheels
Rims	Iridium / Shimano TX505 SH11
Tires	Schwalbe Rapid Rob 2.25'', Casing: K-Guard

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Deore 2 × 10

Crank: 36-26T

Cassette: 11-42T

Speeds: 20s

Gearing

Average

0,62

Average

3,28

Compared to similar bikes, the Canyon Grand Canyon AL 4.0 2020 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	XS	SM	MD	LG	XL
a Seat tube length	380,0	395,0	440,0	485,0	545,0
b Seat tube angle	72,7º	72,7º	72,8º	72,9º	72,9º
c Top tube length	542,0	569,0	603,0	635,0	661,0
d Head tube length	90,0	100,0	100,0	125,0	150,0
e Head tube angle	68,5º	68,5º	70,0º	70,0º	70,0º
f Rake	44,0	44,0	77,0	78,0	78,0
g Trail	93,0	93,0	54,0	53,0	53,0
h Wheelbase	1052,0	1081,0	1134,0	1173,0	1207,0
i Chainstay length	420,0	420,0	427,0	432,0	437,0
j Bottom bracket drop	47,0	47,0	65,0	65,0	65,0
k Stack height	571,0	580,0	611,0	634,0	657,0
l Reach	377,0	402,0	427,0	452,0	472,0
m Standover height	731,0	783,0	821,0	845,0	880,0
x Bottom bracket height	308,0	308,0	309,0	309,0	309,0
y Front center	636,0	665,0	715,0	749,0	778,0
