BikeWise

Canyon Grand Canyon AL SL 8.0 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
120mm

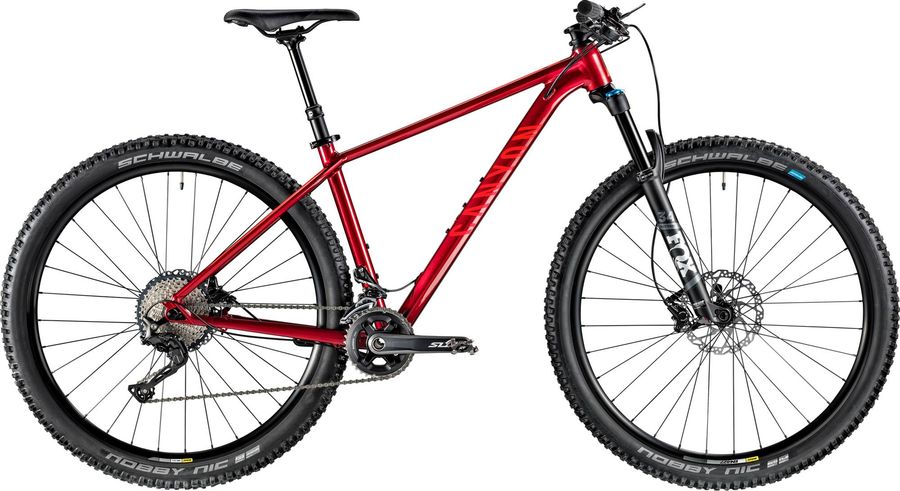

Canyon Grand Canyon AL SL 8.0 2019

About the Canyon Grand Canyon AL SL 8.0 2019

The Canyon Grand Canyon AL SL 8.0 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Grand Canyon AL SL 8.0 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Selle Italia X-Base
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT54, Disc Mount: Centerlock
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano SLX M7000 36/26 36/26
Shifter
Shimano SLX M7000 11s
Bottom bracket
Shimano Pressfit BB-MT500
Front derailleur
Shimano SLX M7020
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Canyon Grand Canyon AL SL, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Front suspension
Fox 34 Rhythm
Wheels
Rims
Mavic XM 424 | Shimano MT400 SH11, Rim Material: Aluminium, Inner Width: 24 mm
Tires
Schwalbe Nobby Nic 2.35'', Compound: Addix Performance

Geometry

Size XS SM MD LG XL
a
Seat tube length
350,0
395,0
440,0
485,0
545,0
b
Seat tube angle
72,7º
72,7º
72,8º
72,9º
72,9º
c
Top tube length
547,0
575,0
606,0
638,0
665,0
d
Head tube length
90,0
100,0
90,0
115,0
145,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
45,0
61,0
61,0
61,0
g
Trail
93,0
92,0
82,0
82,0
82,0
h
Wheelbase
1059,0
1088,0
1134,0
1173,0
1209,0
i
Chainstay length
424,0
424,0
429,0
434,0
439,0
j
Bottom bracket drop
47,0
47,0
65,0
65,0
65,0
k
Stack height
581,0
590,0
611,0
634,0
662,0
l
Reach
381,0
406,0
431,0
456,0
476,0
m
Standover height
735,0
755,0
800,0
831,0
876,0
x
Bottom bracket height
308,0
308,0
309,0
309,0
309,0
y
Front center
639,0
668,0
713,0
747,0
778,0
