Canyon Grand Canyon WMN AL 6.0 2020

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,2 kg
Front travel
100mm

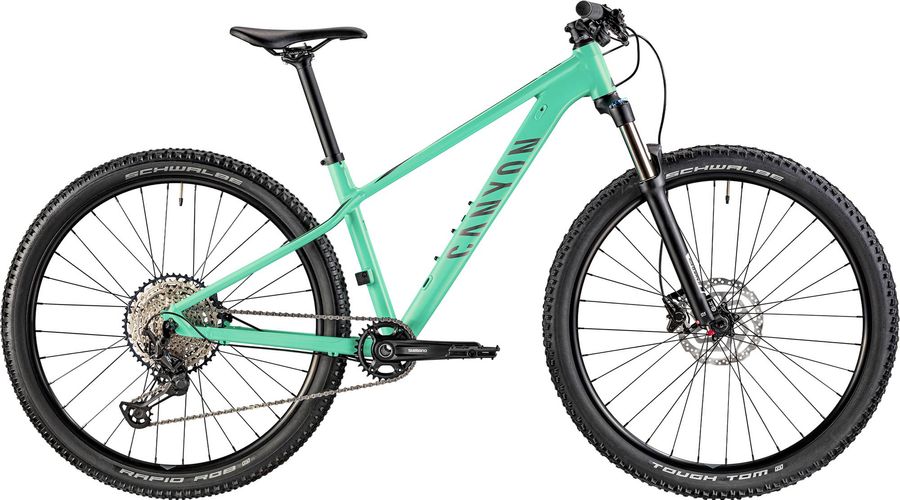

Canyon Grand Canyon WMN AL 6.0 2020

About the Canyon Grand Canyon WMN AL 6.0 2020

The Canyon Grand Canyon WMN AL 6.0 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 13,2 kg.

Features

The Canyon Grand Canyon WMN AL 6.0 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon
Components
Steam
Iridium
Saddle
Iridium WMN Fitness
Headset
Femin FP-H863
Seatpost
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT10, Disc Mount: Centerlock
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano M610 30T 30
Shifter
Shimano SLX M7100 12s
Bottom bracket
Shimano BSA BB52
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Grand Canyon WMN AL
Front suspension
SR Suntour XCR
Wheels
Rims
WH PC IRIDIUM/MT510 29 9x135 CL bk
Tires
Schwalbe Rapid Rob 2.25'', Casing: K-Guard

Geometry

Size XXS XS SM MD
a
Seat tube length
305,0
350,0
395,0
440,0
b
Seat tube angle
72,6º
72,7º
72,7º
72,8º
c
Top tube length
524,0
546,0
575,0
606,0
d
Head tube length
90,0
95,0
105,0
110,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
46,0
46,0
45,0
56,0
g
Trail
91,0
91,0
92,0
87,0
h
Wheelbase
1031,0
1055,0
1084,0
1133,0
i
Chainstay length
429,0
429,0
429,0
437,0
j
Bottom bracket drop
54,0
54,0
54,0
65,0
k
Stack height
570,0
593,0
602,0
632,0
l
Reach
363,0
378,0
404,0
427,0
m
Standover height
666,0
705,0
736,0
784,0
x
Bottom bracket height
301,0
301,0
301,0
309,0
y
Front center
608,0
632,0
661,0
704,0
