Canyon Grand Canyon:ON AL 8.0 2020

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
21,45 kg
Front travel
120mm

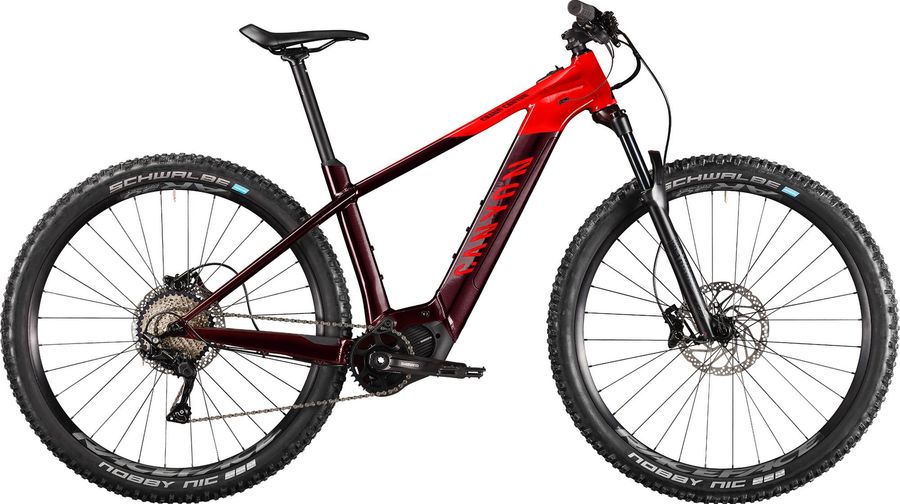

Canyon Grand Canyon:ON AL 8.0 2020

About the Canyon Grand Canyon:ON AL 8.0 2020

The Canyon Grand Canyon:ON AL 8.0 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 21,45 kg.

Features

The Canyon Grand Canyon:ON AL 8.0 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lock-On
Components
Steam
Canyon:ON ST0030
Saddle
Canyon SD:ON
Battery
Shimano Steps E8035 504 Wh, Capacity: 504Wh/14 Ah, IPX5 water-resistant, Voltage: 36 V, Technology: Li-Ion, Weight: 2.9 kg
Seatpost
Iridium
Handlebar
Canyon:ON HB0056 Riserbar
Discs
Shimano EM300
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Shifter
Shimano Deore M6000 10s
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Canyon Grand Canyon:On, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Judy Silver
Wheels
Rims
RaceFace AR30 | Shimano MT400 SH11
Tires
Schwalbe Nobby Nic 2.6'', Compound: Addix Speedgrip, Technology: Tubeless Easy

Geometry

Size XS SM MD LG XL
a
Seat tube length
350,0
400,0
440,0
480,0
540,0
b
Seat tube angle
73,81º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
566,0
579,0
618,0
647,0
669,0
d
Head tube length
100,0
100,0
120,0
135,0
145,0
e
Head tube angle
67,0º
67,0º
68,0º
68,0º
68,0º
f
Rake
48,0
49,0
56,0
56,0
55,0
g
Trail
99,0
98,0
91,0
91,0
92,0
h
Wheelbase
1092,0
1110,0
1158,0
1189,0
1212,0
i
Chainstay length
423,0
423,0
436,0
436,0
436,0
j
Bottom bracket drop
54,0
54,0
65,0
65,0
65,0
k
Stack height
585,0
603,0
652,0
666,0
676,0
l
Reach
396,0
406,0
431,0
456,0
476,0
m
Standover height
718,0
753,0
798,0
815,0
845,0
x
Bottom bracket height
301,0
301,0
309,0
309,0
309,0
y
Front center
675,0
693,0
730,0
761,0
784,0
