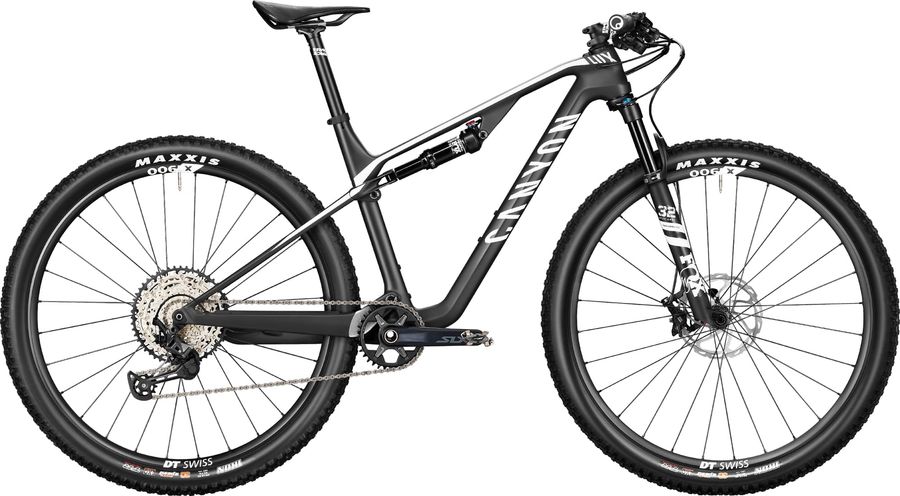

Canyon Lux CF 6 2022
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,76 kg
Front travel
100mm
Rear travel
100mm
About the Canyon Lux CF 6 2022
The Canyon Lux CF 6 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and remote lockout. The bike weighs approximately 11,76 kg.
Features
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face Ride, Strong but light 80mm stem from Race Face.
|
|---|---|
|
Saddle
|
Selle Italia Model X, Saddle with central cut-out and flexible wings for maximum comfort. Featuring durable Soft-Tek cover for maximum durability and scratch resistance. Rail material: manganese.
|
|
Seatpost
|
Race Face Ride, Featuring the Race Face dual-bolt, adjustable head design making a saddle fit so easy., Clamp diameter: 30,9 mm
|
|
Handlebar
|
Race Face Ride Rise, Flat bars that offer great control without compromising performance., Width: 740 mm
|
|
Discs
|
Hayes D-Series 160 mm | Hayes D-Series 180 mm
|
|
Brakes
|
Shimano SLX BR-M7100
425 (BL-M7100) g
Hydraulic disc brake
2 piston
|
|
|
|
|
Crankset
|
Shimano SLX M7100, Shimano SLX. Crank Length: S: 170mm; M-XL: 175mm
|
|---|---|
|
Shifter
|
Shimano SLX, 12-speed, 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
|
|
Bottom bracket
|
Shimano Pressfit BB71, Bottom bracket bearings that are built to last, no matter what you throw at them.
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M7100
252 g
|
|
|
|
|
Frame
|
Canyon Lux CF SL, For riders and racers alike the full suspension Lux is a light, strong and effortlessly fast XC bike. Whether you're riding between the tapes or on the trails, this is hard to beat., Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
|
|---|---|
|
Front suspension
|
Fox 32 Performance SC
|
|
Rear suspension
|
Fox Float DPS Performance Elite
|
|
Rims
|
DT Swiss XR 1900 Spline, Strong, lightweight wheels that perform as beautifully as they look., Rotor Mount: IS 6-bolt, Wheelsize: 29" | DT Swiss XR 1900 Spline, Strong, lightweight wheels that perform as beautifully as they look. The high precision freehub minimizes resistance and maximizes lifespan., Rotor Mount: IS 6-bolt, Wheelsize: 29"
|
|---|---|
|
Tires
|
MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Wheelsize: 29"
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
425,0
|
465,0
|
505,0
|
545,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
565,0
|
591,0
|
615,0
|
642,0
|
|
d
Head tube length
|
90,0
|
100,0
|
115,0
|
140,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
54,0
|
52,0
|
52,0
|
53,0
|
|
g
Trail
|
82,0
|
85,0
|
85,0
|
83,0
|
|
h
Wheelbase
|
1098,0
|
1120,0
|
1145,0
|
1174,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
34,0
|
34,0
|
34,0
|
35,0
|
|
k
Stack height
|
576,0
|
586,0
|
600,0
|
623,0
|
|
l
Reach
|
401,0
|
421,0
|
441,0
|
461,0
|
|
m
Standover height
|
782,0
|
785,0
|
792,0
|
807,0
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
339,0
|
|
y
Front center
|
674,0
|
696,0
|
721,0
|
750,0
|
