Canyon Lux CF 7 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,26 kg
Front travel
100mm
Rear travel
100mm

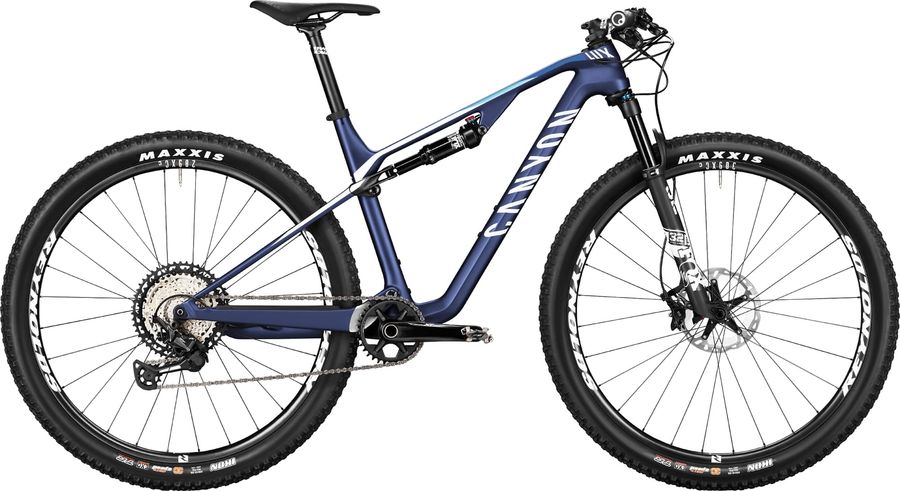

Canyon Lux CF 7 2022

About the Canyon Lux CF 7 2022

The Canyon Lux CF 7 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and remote lockout. The bike weighs approximately 11,26 kg.

Features

The Canyon Lux CF 7 2022 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Pedals
None included
Components
Steam
Race Face Ride, Strong but light 80mm stem from Race Face.
Saddle
Selle Italia SLS Boost FeC, Saddle shaped to support a more aggressive riding position.
Seatpost
Race Face Ride, Featuring the Race Face dual-bolt, adjustable head design making a saddle fit so easy., Clamp diameter: 30,9 mm
Handlebar
Race Face Ride Rise, Flat bars that offer great control without compromising performance., Width: 740 mm
Discs
Shimano RT-MT800, 180mm | Shimano RT-MT800
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano Deore XT M8100 34T, 34-tooth single chainring.
Shifter
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Bottom bracket
Shimano Pressfit BB71, Bottom bracket bearings that are built to last, no matter what you throw at them.
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Canyon Lux CF SL, For riders and racers alike the full suspension Lux is a light, strong and effortlessly fast XC bike. Whether you're riding between the tapes or on the trails, this is hard to beat., Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Front suspension
Fox 32 Performance Elite
Rear suspension
Fox Float DPS Performance Elite
Wheels
Rims
Reynolds TR309c XC, Carbon XC wheels that combine flawless ride quality and durability, designed to push the limits of aggressive racing and riding., Rotor Mount: Center Lock, Wheelsize: 29" | Reynolds TR289c XC, S12, Carbon XC wheels that combine flawless ride quality and durability, designed to push the limits of aggressive racing and riding., Rotor Mount: Center Lock, Wheelsize: 29"
Tires
MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Wheelsize: 29"

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
591,0
615,0
642,0
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
54,0
52,0
52,0
53,0
g
Trail
82,0
85,0
85,0
83,0
h
Wheelbase
1098,0
1120,0
1145,0
1174,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
34,0
34,0
34,0
35,0
k
Stack height
576,0
586,0
600,0
623,0
l
Reach
401,0
421,0
441,0
461,0
m
Standover height
782,0
785,0
792,0
807,0
x
Bottom bracket height
340,0
340,0
340,0
339,0
y
Front center
674,0
696,0
721,0
750,0
