Canyon Lux CF 8 2021

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,64 kg
Front travel
110mm
Rear travel
100mm

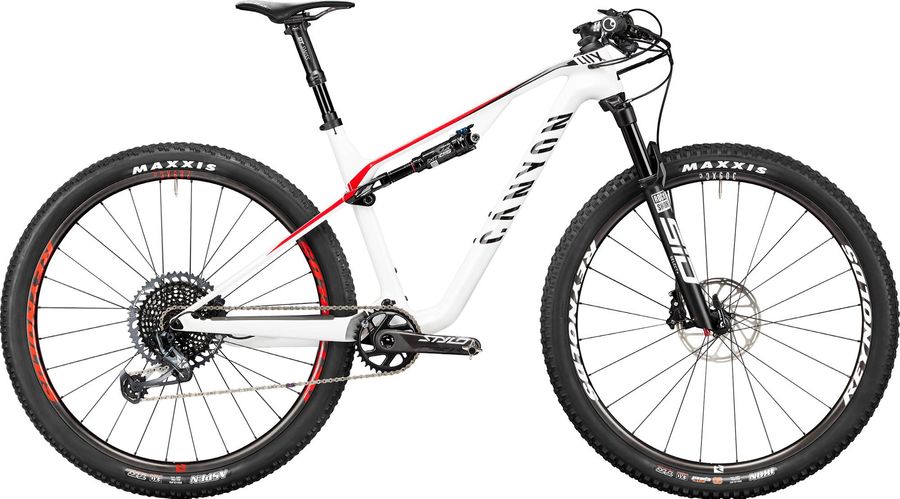

Canyon Lux CF 8 2021

About the Canyon Lux CF 8 2021

The Canyon Lux CF 8 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 11,64 kg.

Features

The Canyon Lux CF 8 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Race Face Ride
Saddle
Selle Italia SLR Boost
Seatpost
DT Swiss D 232
Handlebar
Race Face Ride Rise
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock | SRAM Centerline Rounded Edges, 180mm SRAM Centerline rear rotor offers excellent braking control.
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
Truvativ Stylo Carbon DUB 34T
Shifter
SRAM X01 Eagle, 12-speed, Aimed at aggressive trail riders, Eagle X01 pairs premium materials and design for years of accurate shifts under pressure.
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Lux CF SL, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Front suspension
RockShox SID SL Select DebonAir 1468 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-SEL-C1
Name
SID SL Select
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1468
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
Reynolds TR 289 C XC | Reynolds TR 309 C XC
Tires
MAXXIS Aspen 2.25" | MAXXIS Ikon Exo 2.35"

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
591,0
615,0
642,0
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
54,0
52,0
52,0
53,0
g
Trail
82,0
85,0
85,0
83,0
h
Wheelbase
1098,0
1120,0
1145,0
1174,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
34,0
34,0
34,0
35,0
k
Stack height
576,0
586,0
600,0
623,0
l
Reach
401,0
421,0
441,0
461,0
m
Standover height
782,0
785,0
792,0
807,0
x
Bottom bracket height
340,0
340,0
340,0
339,0
y
Front center
674,0
696,0
721,0
750,0
