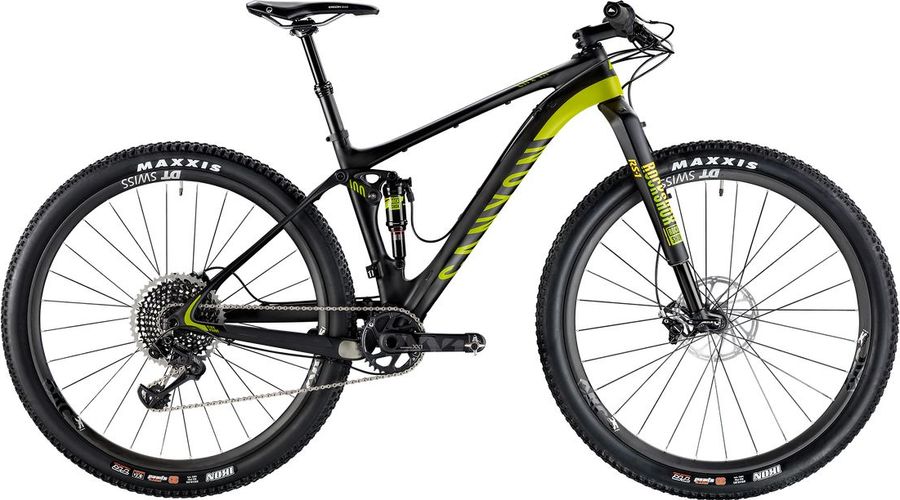

Canyon Lux CF 9.0 Pro Race Team 2018
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm
About the Canyon Lux CF 9.0 Pro Race Team 2018
The Canyon Lux CF 9.0 Pro Race Team 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain. Its features include internal routing, dropper seatpost, and hydraulic disc brakes.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Canyon Race Grip, Ultralight silicone grip, Specially adapted for grip shift, Outer diameter: 32 mm black
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Canyon V14, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Hexagonal profile design for extra torsional stiffness, Compliant with Canyon Category 3 testing standards
|
|---|---|
|
Saddle
|
Ergon SM30 Evo, Ergonomically shaped, 274g,, CrMo Rails
|
|
Headset
|
Cane Creek 40
|
|
Seatpost
|
Kind Shock LEV CI
|
|
Handlebar
|
Canyon H20 Flat CF, Width: 720 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight carbon construction and balanced geometry, Compliant with Canyon Category 3 testing standards
|
|
Brakes
|
SRAM Level Ultimate
Hydraulic
317 g
|
|
|
|
|
Crankset
|
SRAM XX1 EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle Grip Shift, Carbon fibre, 12-speed, X-Actuation
|
|
Bottom bracket
|
SRAM GXP Pressfit
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Frame
|
Canyon Lux CF 29, Single piece carbon rear triangle, Carbon Flex Pivot, Carbon monocoque main triangle, Single piece aluminium rocker, Internal Cable Routing, Internal routing for dropper seatposts, Chain suck protection plate, Press-Fit Bottom Bracket, Tapered Steerer, Tapered Head Tube
|
|---|---|
|
Rear suspension
|
RockShox Monarch XX
275 g
|
|
|
|
|
Front suspension
|
RockShox RS-1
|
|
Rims
|
DT Swiss XRC 1200 Spline, UD Carbon rims, SPLINE® Technology, SPLINE® Hub body, DT Swiss Ratchet System
|
|---|---|
|
Tires
|
Maxxis IKON, 3C MaxxSpeed, Tubeless-Ready, 120tpi, Low rolling resistance
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
445,0
|
485,0
|
535,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
555,0
|
580,0
|
601,0
|
627,0
|
|
d
Head tube length
|
92,0
|
105,0
|
115,0
|
128,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
18,0
|
19,0
|
18,0
|
19,0
|
|
g
Trail
|
117,0
|
116,0
|
117,0
|
116,0
|
|
h
Wheelbase
|
1082,0
|
1109,0
|
1130,0
|
1157,0
|
|
i
Chainstay length
|
445,0
|
445,0
|
445,0
|
445,0
|
|
j
Bottom bracket drop
|
-40,0
|
-40,0
|
-40,0
|
-40,0
|
|
k
Stack height
|
577,0
|
589,0
|
599,0
|
611,0
|
|
l
Reach
|
388,0
|
410,0
|
428,0
|
450,0
|
|
m
Standover height
|
795,0
|
805,0
|
811,0
|
839,0
|
|
x
Bottom bracket height
|
414,0
|
414,0
|
414,0
|
414,0
|
|
y
Front center
|
640,0
|
667,0
|
688,0
|
715,0
|
