Canyon Lux CF SL 6.0 2020

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,7 kg
Front travel
110mm
Rear travel
100mm

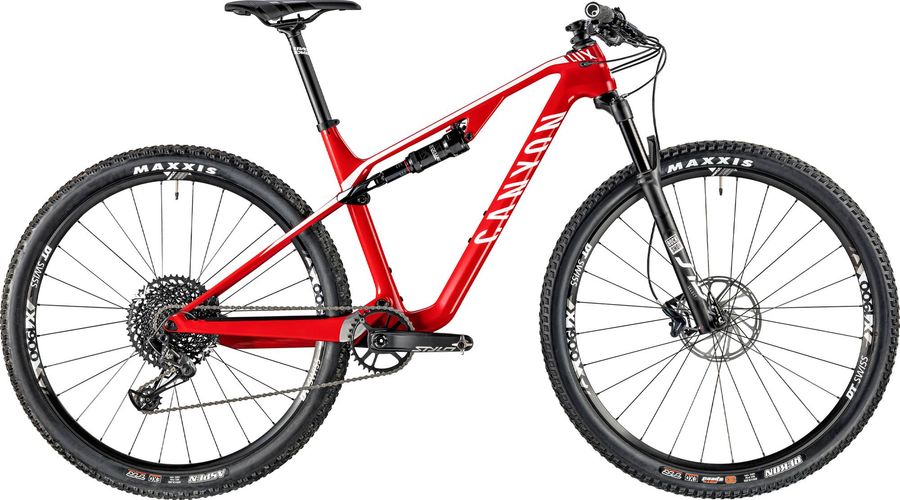

Canyon Lux CF SL 6.0 2020

About the Canyon Lux CF SL 6.0 2020

The Canyon Lux CF SL 6.0 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 148, hydraulic disc brakes, and remote lockout. The bike weighs approximately 11,7 kg.

Features

The Canyon Lux CF SL 6.0 2020 has 3 features listed below.
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Race Face Ride
Saddle
Selle Italia X1
Seatpost
Race Face Ride
Handlebar
Race Face Ride Flatbar, Material: Aluminium
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Truvativ Stylo 6K DUB 34T 34
Shifter
SRAM NX Eagle Trigger 12s, Clamp: MMX
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Frameset
Frame
Canyon Lux CF SL, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Rear suspension
RockShox Deluxe Ultimate Remote 345 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Damper type
RLR
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
380, 430
Model
RS-DLX-ULTR-B2
Name
Deluxe Ultimate Remote
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
345
Front suspension
RockShox SID Select DebonAir 1671 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SEL-C1
Name
SID Select
Spring
DebonAir
Travel (mm)
110mm, 120mm
Upper tube type
35mm tapered aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1671
Wheel size
29"
Wheels
Rims
DT Swiss X 1900 XD, Rim Material: Aluminium, Inner Width: 20 mm, Freewheel: Pawl
Tires
MAXXIS Aspen 2.25"

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
591,0
615,0
642,0
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
54,0
52,0
54,0
53,0
g
Trail
82,0
85,0
82,0
83,0
h
Wheelbase
1098,0
1120,0
1145,0
1174,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
34,0
34,0
38,0
35,0
k
Stack height
576,0
586,0
600,0
623,0
l
Reach
401,0
421,0
441,0
461,0
m
Standover height
782,0
785,0
792,0
807,0
x
Bottom bracket height
340,0
340,0
336,0
339,0
y
Front center
674,0
696,0
722,0
750,0
