Canyon Lux CF SL 8.0 Race Team 2019

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
110mm
Rear travel
100mm

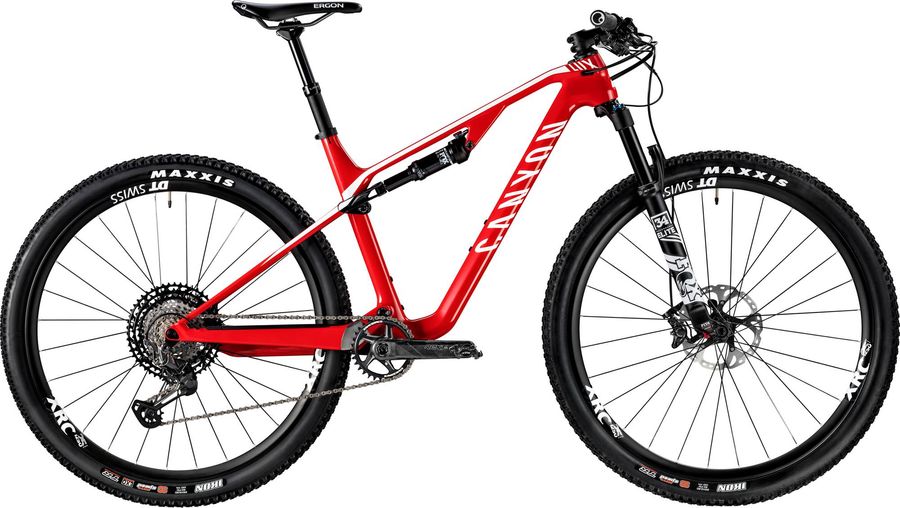

Canyon Lux CF SL 8.0 Race Team 2019

About the Canyon Lux CF SL 8.0 Race Team 2019

The Canyon Lux CF SL 8.0 Race Team 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Lux CF SL 8.0 Race Team 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V14
Saddle
Ergon SM Team
Seatpost
Kind Shock Lev SI
Handlebar
Canyon H20 Carbon Flatbar, Material: Carbon, Rise : 5 mm
Discs
Shimano RT81, Disc Mount: Centerlock
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Race Face Next SL G5 Carbon 34T 34
Shifter
Shimano XTR M9100 12s
Bottom bracket
Race Face Pressfit Cinch
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Lux CF SL, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Rear suspension
Fox Float DPS Performance Elite
Front suspension
Fox 34 SC Performance Elite
Wheels
Rims
DT Swiss XRC 1250 SH12, Rim Material: Carbon, Inner Width: 25 mm, Freewheel: Ratchet
Tires
MAXXIS Ikon 2.2'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
591,0
615,0
642,0
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
54,0
52,0
54,0
53,0
g
Trail
82,0
85,0
82,0
83,0
h
Wheelbase
1098,0
1120,0
1145,0
1174,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
34,0
34,0
38,0
35,0
k
Stack height
576,0
586,0
600,0
623,0
l
Reach
401,0
421,0
441,0
461,0
m
Standover height
782,0
785,0
792,0
807,0
x
Bottom bracket height
340,0
340,0
336,0
339,0
y
Front center
674,0
696,0
722,0
750,0
