Canyon Lux CF SLX 9.0 Pro Race 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10 kg
Front travel
110mm
Rear travel
100mm

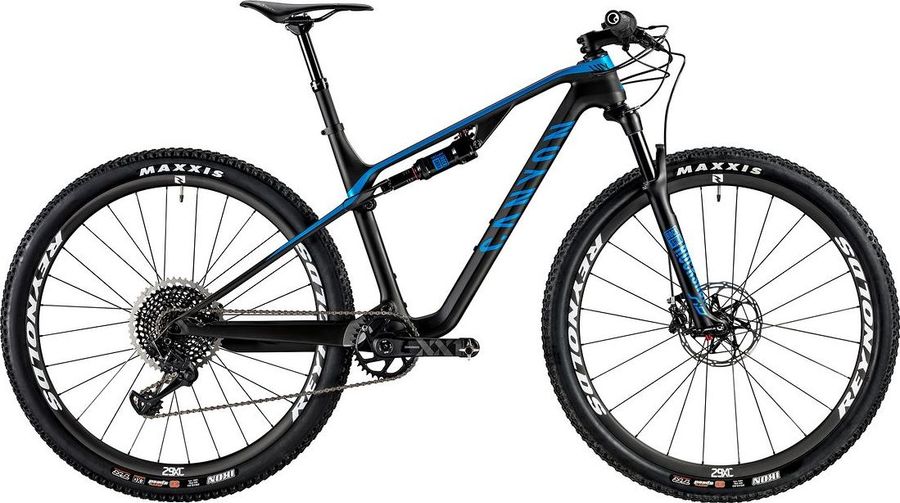

Canyon Lux CF SLX 9.0 Pro Race 2018

About the Canyon Lux CF SLX 9.0 Pro Race 2018

The Canyon Lux CF SLX 9.0 Pro Race 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain. Its features include dropper seatpost, hydraulic disc brakes, and remote lockout. The bike weighs approximately 10 kg.

Features

The Canyon Lux CF SLX 9.0 Pro Race 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20 Single Twist Shift
Pedals
none included
Components
Steam
Canyon V14, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Hexagonal profile design for extra torsional stiffness, Compliant with Canyon Category 3 testing standards
Saddle
Selle Italia SLR Lite, Length & width: 275 x 131 mm
Headset
Canyon | Acros, Canyon engineered with extra thin and light bearings, IPU Top Cap
Seatpost
Kind Shock LEV SI
Handlebar
Canyon H20 Flat CF, Width: 720 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight carbon construction and balanced geometry, Compliant with Canyon Category 3 testing standards
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
Shifter
SRAM XX1 Eagle Grip Shift, Carbon fibre, 12-speed, X-Actuation
Bottom bracket
SRAM DUB Pressfit
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Canyon LUX CF SLX
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox SID World Cup DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm, 220mm
Minimum rotor size
160mm
Model
FS-SID-WC-B3
Name
SID World Cup
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Reynolds Black Label XC
Tires
Maxxis IKON, 3C MaxxSpeed, Tubeless-Ready, 120tpi, Low rolling resistance

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
567,3
589,9
613,8
640,3
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
53,0
53,0
53,0
53,0
g
Trail
80,0
80,0
80,0
80,0
h
Wheelbase
1093,1
1116,5
1141,7
1170,2
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
572,5
581,9
596,0
619,5
l
Reach
406,0
426,0
446,0
466,0
m
Standover height
777,0
780,0
787,0
802,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
670,0
693,0
718,0
747,0
