Canyon Lux CF SLX 9.0 Race Limited 2020

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,2 kg
Front travel
100mm
Rear travel
100mm

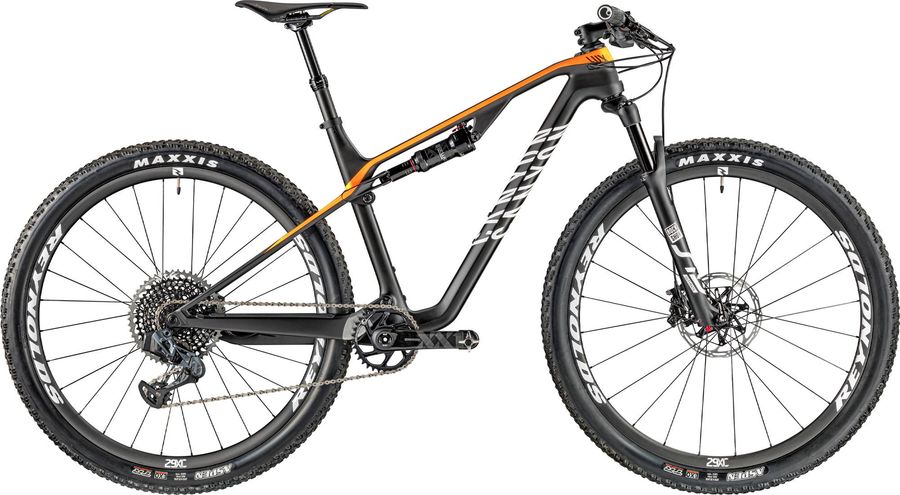

Canyon Lux CF SLX 9.0 Race Limited 2020

About the Canyon Lux CF SLX 9.0 Race Limited 2020

The Canyon Lux CF SLX 9.0 Race Limited 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 10,2 kg.

Features

The Canyon Lux CF SLX 9.0 Race Limited 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V14
Saddle
Selle Italia SLR Kit Carbonio
Seatpost
Kind Shock Lev CI
Handlebar
Canyon H20 Carbon Flatbar, Material: Carbon, Rise : 5 mm
Discs
SRAM Centerline X Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle DUB 34T, Material: Carbon 34
Shifter
SRAM XX1 Eagle AXS 12s
Bottom bracket
SRAM Pressfit DUB
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Canyon Lux CF SLX, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Front suspension
RockShox SID Ultimate Carbon DebonAir 1481 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULTC-B4
Name
SID Ultimate Carbon
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, Maxle Stealth
Weight
1481
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Ultimate Remote 345 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Damper type
RLR
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
380, 430
Model
RS-DLX-ULTR-B2
Name
Deluxe Ultimate Remote
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
345
Wheels
Rims
Reynolds Blacklabel XC XD, Rim Material: Carbon, Inner Width: 25 mm, Weight: 828 g
Tires
MAXXIS Aspen 2.25"

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
567,0
590,0
614,0
640,0
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
52,0
53,0
53,0
52,0
g
Trail
81,0
80,0
80,0
81,0
h
Wheelbase
1093,0
1117,0
1142,0
1170,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
573,0
582,0
596,0
620,0
l
Reach
406,0
426,0
446,0
466,0
m
Standover height
777,0
780,0
787,0
802,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
670,0
694,0
719,0
747,0
