Canyon Lux CF SLX 9.0 Race Team 2018

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
9,9 kg
Front travel
100mm
Rear travel
100mm

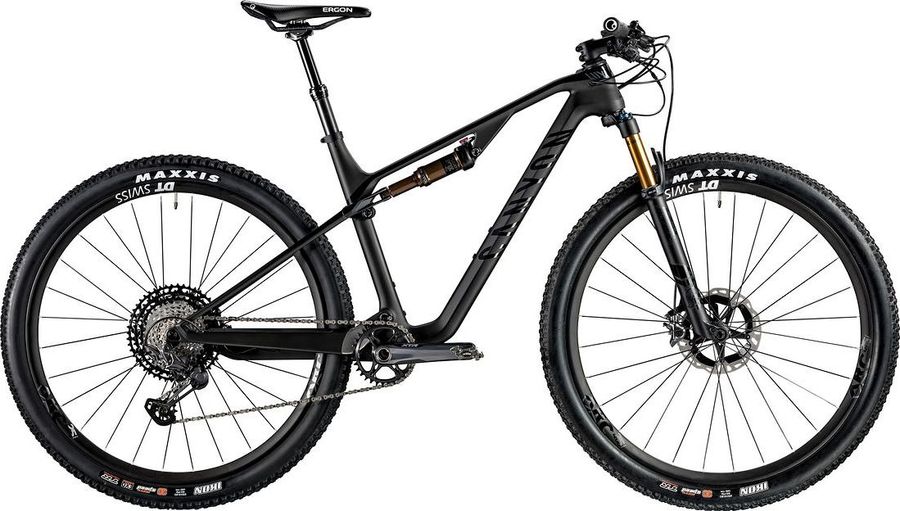

Canyon Lux CF SLX 9.0 Race Team 2018

About the Canyon Lux CF SLX 9.0 Race Team 2018

The Canyon Lux CF SLX 9.0 Race Team 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain. Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 9,9 kg.

Features

The Canyon Lux CF SLX 9.0 Race Team 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
none included
Components
Steam
Canyon V14, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Hexagonal profile design for extra torsional stiffness, Compliant with Canyon Category 3 testing standards
Saddle
Ergon SM Team Carbon, Lightweight, flex optimised carbon shell, Low friction coating, Carbon Rails
Headset
Canyon | Acros, Canyon engineered with extra thin and light bearings, IPU Top Cap
Seatpost
Kind Shock LEV CI Carbon
Handlebar
Canyon H20 Flat CF, Width: 720 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight carbon construction and balanced geometry, Compliant with Canyon Category 3 testing standards
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR, 12s
Cassette
Shimano XTR, 12s
Shifter
Shimano XTR, 12s
Bottom bracket
Shimano Pressfit, Press-Fit, 86,5 x 41mm, SM BB72-41B
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon LUX CF SLX
Front suspension
Fox 32 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XRC 1200 Spline, UD Carbon rims, SPLINE® Technology, SPLINE® Hub body, DT Swiss Ratchet System
Tires
Maxxis IKON, 3C MaxxSpeed, Tubeless-Ready, 120tpi, Low rolling resistance

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
567,3
589,9
613,8
640,3
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
53,0
53,0
53,0
53,0
g
Trail
80,0
80,0
80,0
80,0
h
Wheelbase
1093,1
1116,5
1141,7
1170,2
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
572,5
581,9
596,0
619,5
l
Reach
406,0
426,0
446,0
466,0
m
Standover height
777,0
780,0
787,0
802,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
670,0
693,0
718,0
747,0
