BikeWise

Canyon Lux CF SLX 9 2021

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,71 kg
Front travel
100mm
Rear travel
100mm

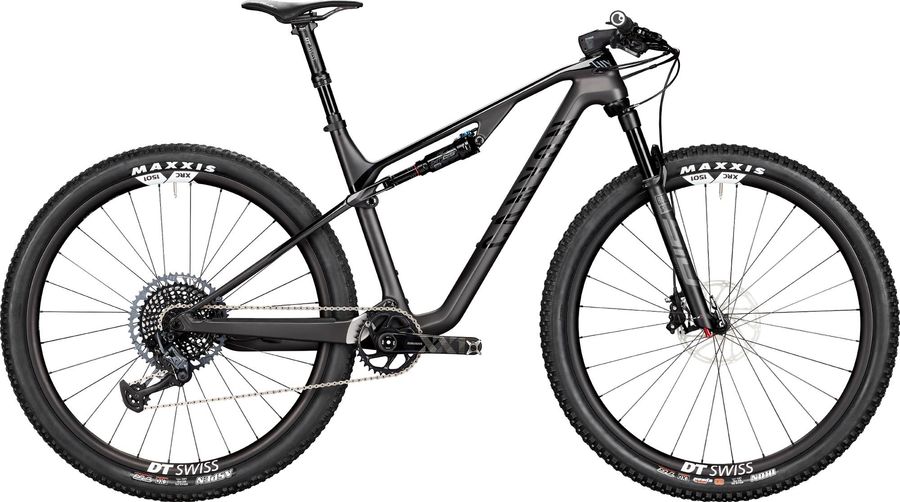

Canyon Lux CF SLX 9 2021

About the Canyon Lux CF SLX 9 2021

The Canyon Lux CF SLX 9 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 10,71 kg.

Features

The Canyon Lux CF SLX 9 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Saddle
Selle Italia SLR Boost
Seatpost
DT Swiss D 232
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole | SRAM Centerline, 180mm, 160mm SRAM Centerline rear rotor offers excellent braking control.
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM XX1 Eagle DUB 34T, Material: Carbon
Shifter
SRAM XX1 Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Lux CF SLX, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Front suspension
RockShox SID SL Select+ DebonAir 1498 g
Color
Diffusion Black, Diffusion Black W/Dark Polar Grey Foil Decal, Gloss Black, Gloss Black W/Dark Polar Grey Foil Decal
Damper type
Charger 2 RL
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-SELP-C1
Name
SID SL Select+
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1498
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
DT Swiss XRC 1501 XD | DT Swiss XRC 1501 Spline
Tires
MAXXIS Aspen 2.25" | MAXXIS Ikon Exo 2.35"

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
567,0
590,0
614,0
640,0
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
52,0
53,0
53,0
52,0
g
Trail
81,0
80,0
80,0
81,0
h
Wheelbase
1093,0
1117,0
1142,0
1170,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
573,0
582,0
596,0
620,0
l
Reach
406,0
426,0
446,0
466,0
m
Standover height
777,0
780,0
787,0
802,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
670,0
694,0
719,0
747,0
