Canyon Lux CF SLX 9 TEAM 2022

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,22 kg
Front travel
100mm
Rear travel
100mm

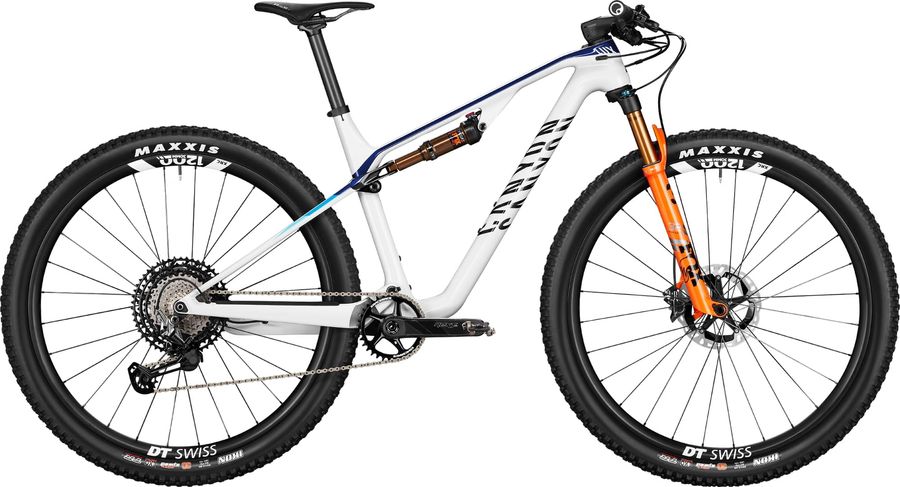

Canyon Lux CF SLX 9 TEAM 2022

About the Canyon Lux CF SLX 9 TEAM 2022

The Canyon Lux CF SLX 9 TEAM 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 10,22 kg.

Features

The Canyon Lux CF SLX 9 TEAM 2022 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Pedals
None included
Components
Saddle
Selle Italia SLR KC Boost, One of the lightest saddles available., Gender: Male
Seatpost
Canyon S29 VCLS Seatpost, Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing., Clamp diameter: 30,9 mm
Discs
Shimano RT-MT900, 180mm | Shimano RT-MT900
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL G5 Carbon 34T, Carbon crankset. Crank arm length: S = 170 | M - XL = 175. Chainring size: 34T.
Shifter
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Bottom bracket
Race Face Pressfit Cinch, Race Face's CINCH system provides a great, no fuss, reliable drivetrain with a quiet bottom bracket that will keep you going for years.
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Lux CF SLX, A true podium threat, the Lux CF SLX has been our go-to full suspension XC bike for Canyon Factory racers including Mathieu van der Poel and Emily Batty.
Front suspension
Fox 32 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XRC 1200 Spline, Rotor Mount: Center Lock, Wheelsize: 29"
Tires
MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Wheelsize: 29"

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
567,0
590,0
614,0
640,0
d
Head tube length
90,0
100,0
115,0
140,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
52,0
53,0
53,0
52,0
g
Trail
81,0
80,0
80,0
81,0
h
Wheelbase
1093,0
1117,0
1142,0
1170,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
573,0
582,0
596,0
620,0
l
Reach
406,0
426,0
446,0
466,0
m
Standover height
777,0
780,0
787,0
802,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
670,0
694,0
719,0
747,0
