Canyon Lux Trail CF 7 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,68 kg
Front travel
120mm
Rear travel
110mm

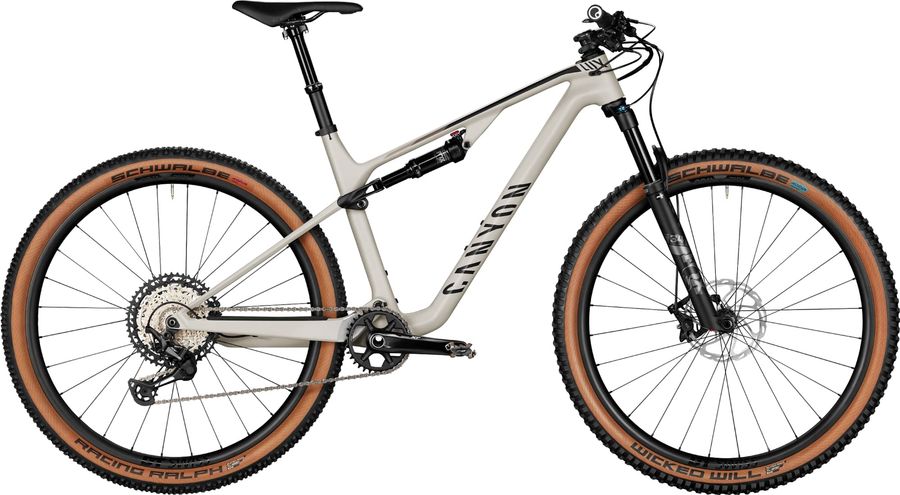

Canyon Lux Trail CF 7 2022

About the Canyon Lux Trail CF 7 2022

The Canyon Lux Trail CF 7 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,68 kg.

Features

The Canyon Lux Trail CF 7 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Pedals
None included
Components
Steam
Race Face Ride, Durable, fuss-free alloy stem. Length: 60 mm. Clamp diameter: 35 mm. Material: 6061 aluminium., Stem Spacer: S: 5, M: 10, L: 15, XL: 20.
Saddle
Selle Italia SLS Boost FeC, Saddle shaped to support a more aggressive riding position.
Seatpost
FOX Transfer Performance Elite
Handlebar
Race Face Ride Riserbar, Robust, reliable alloy bar. Width: 760 mm. Diameter: 35 mm. Material: 6061 aluminium., Rise: 10mm. Upsweep: 5°. Backsweep: 8°.
Discs
Shimano RT-MT800, 180mm | Shimano RT-MT800
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano Deore XT M8100 34T, 34-tooth single chainring.
Shifter
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Bottom bracket
Shimano Pressfit BB71
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Lux Trail CF, Lightweight, progressive, full-suspension carbon frame for greater control on rough tracks. Weight: 1,905 g. Rear travel: 110 mm. Wheel size: 29".
Rear suspension
Fox Float DPS Performance Elite
Front suspension
Fox 34 Performance Elite
Wheels
Rims
DT Swiss XRC 1700 Spline, Robust 29-inch carbon wheel. Internal rim width: 30 mm. Hub dimensions: 15 x 110 mm., Rotor Mount: CL. Hub Width, Axle Front: 110mm. Hub Width, Axle Rear: 148mm. Tubeless Technology: Taped. | DT Swiss XRC 1700 Spline S12, Robust 29-inch carbon wheel. Internal rim width: 30 mm. Hub: Ratchet SL, 12 x 148 mm., Rotor Mount: CL. Hub Width, Axle Front: 110mm. Hub Width, Axle Rear: 148mm. Tubeless Technology: Taped.
Tires
Schwalbe Racing Ralph SR TLE EVO 2.35", Fast-rolling 29-inch cross-country tyre. Width: 2.35". | Schwalbe Wicked Will SR TLE EVO 2.4", 29-inch tyres combining the speed of a cross-country tyre with the grip of a trail tyre. Width: 2.4".

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
595,0
618,0
641,0
665,0
d
Head tube length
90,0
100,0
115,0
130,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
46,0
46,0
45,0
46,0
g
Trail
105,0
105,0
106,0
105,0
h
Wheelbase
1143,0
1167,0
1192,0
1218,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
582,0
591,0
605,0
619,0
l
Reach
431,0
451,0
471,0
491,0
m
Standover height
781,0
785,0
788,0
800,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
720,0
744,0
769,0
795,0
