Canyon Lux Trail CF 8 2022

MTB Cross Country
Groupset
SRAM GX Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,8 kg
Front travel
120mm
Rear travel
110mm

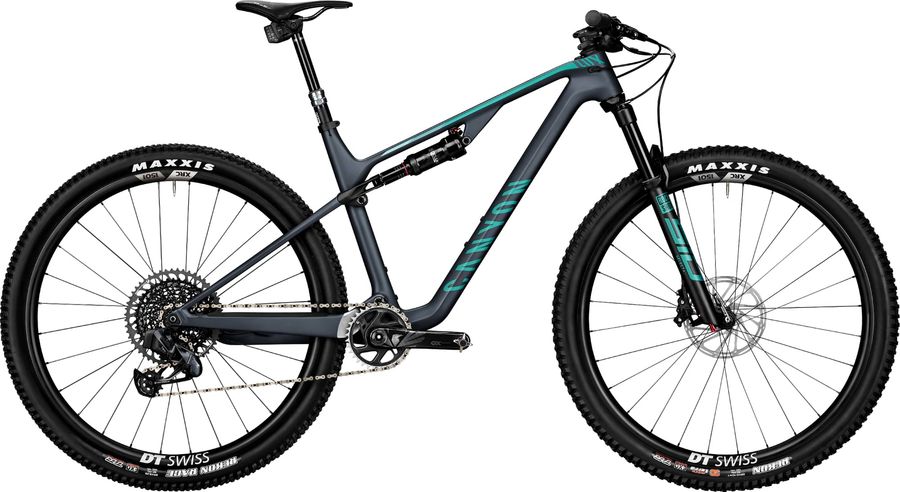

Canyon Lux Trail CF 8 2022

About the Canyon Lux Trail CF 8 2022

The Canyon Lux Trail CF 8 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 11,8 kg.

Features

The Canyon Lux Trail CF 8 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Pedals
None included
Components
Steam
Race Face Ride, Durable, fuss-free alloy stem. Length: 60 mm. Clamp diameter: 35 mm. Material: 6061 aluminium., Stem Spacer: S: 5, M: 10, L: 15, XL: 20.
Saddle
Selle Italia SLR Boost, Saddle shaped to support a more aggressive riding position.
Seatpost
RockShox Reverb AXS, Dropper post with bar-mounted remote. Travel: 125 mm. diameter: 30.9 mm.
Handlebar
Race Face Ride Riserbar, Robust, reliable alloy bar. Width: 760 mm. Diameter: 35 mm. Material: 6061 aluminium., Rise: 10mm. Upsweep: 5°. Backsweep: 8°.
Discs
SRAM Centerline, 160mm, Diameter: 160 mm. | SRAM Centerline, 180mm, Diameter: 180 mm.
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM GX Eagle Carbon DUB 34T
Shifter
SRAM GX Eagle AXS Contoller
Bottom bracket
SRAM Pressfit DUB
Rear derailleur
SRAM GX Eagle AXS
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM GX Eagle
Frameset
Frame
Lux Trail CF, Lightweight, progressive, full-suspension carbon frame for greater control on rough tracks. Weight: 1,905 g. Rear travel: 110 mm. Wheel size: 29".
Rear suspension
RockShox Deluxe Ultimate 340 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-ULT-B2
Name
Deluxe Ultimate
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Front suspension
RockShox SID Select+ DebonAir 1703 g
Color
Diffusion Black, Diffusion Black W/Dark Polar Grey Foil Decal, Gloss Black, Gloss Black W/Dark Polar Grey Foil Decal
Damper type
Charger 2 RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SELP-C1
Name
SID Select+
Spring
DebonAir
Travel (mm)
100mm, 110mm, 120mm
Upper tube type
35mm tapered wall aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1703
Wheel size
29"
Wheels
Rims
DT Swiss XRC 1501 Spline S12, Wide, light, durable premium carbon wheels. Inner rim width: 30 mm. Ratchet EXP hub. Weight: 728 g. Hub dimension: 15 x 110 mm., Rotor Mount: IS 6-Bolt. Hub Width, Axle Front: 110mm. Hub Width, Axle Rear: 148mm. Tubeless Technology: Taped. | DT Swiss XRC 1501 Spline S12, Wide, light, durable premium carbon wheels. Inner rim width: 30 mm. Ratchet EXP hub. Weight: 816 g. Hub dimensions: 12 x 148 mm., Rotor Mount: IS 6-Bolt. Hub Width, Axle Front: 110mm. Hub Width, Axle Rear: 148mm. Tubeless Technology: Taped.
Tires
Maxxis Rekon 3C Exo 2.4, Grippy 29-inch front tyre with puncture-resistant EXO carcass. Featuring 3C MaxxSpeed rubber compound. Width: 2.4". | Maxxis Rekon Race Dual Exo 2.35, High-traction, fast-rolling 29-inch rear wheel with EXO carcass for improved puncture protection. Width: 2.35".

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
465,0
505,0
545,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
595,0
618,0
641,0
665,0
d
Head tube length
90,0
100,0
115,0
130,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
46,0
46,0
45,0
46,0
g
Trail
105,0
105,0
106,0
105,0
h
Wheelbase
1143,0
1167,0
1192,0
1218,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
582,0
591,0
605,0
619,0
l
Reach
431,0
451,0
471,0
491,0
m
Standover height
781,0
785,0
788,0
800,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
720,0
744,0
769,0
795,0
