Canyon Neuron 5 WMN 2021

Women's Bike
MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
15,38 kg
Front travel
130mm
Rear travel
130mm

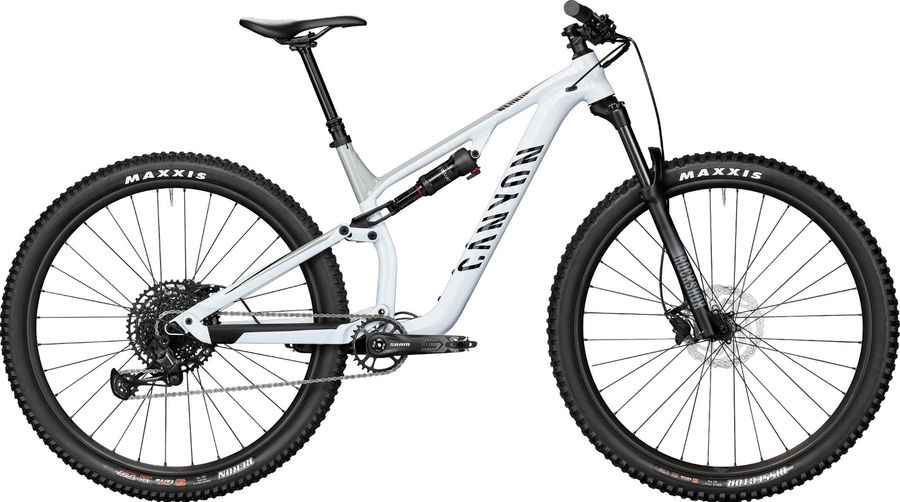

Canyon Neuron 5 WMN 2021

About the Canyon Neuron 5 WMN 2021

The Canyon Neuron 5 WMN 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 15,38 kg.

Features

The Canyon Neuron 5 WMN 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon EP111 Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Iridium WMN
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT10, Disc Mount: Centerlock
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle Trigger 12s, SX Eagle's 12-speed shifters offer quick and crisp gear changes.
Bottom bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Judy Silver
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Iridium 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Iridium / Shimano MT410 S12
Tires
MAXXIS Dissector 2.4", The Dissector rear tire offers outstanding traction and braking control. | MAXXIS Rekon 2.4"

Geometry

Size XXS XS SM MD
a
Seat tube length
400,0
400,0
400,0
445,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
539,0
559,0
581,0
603,0
d
Head tube length
90,0
90,0
100,0
100,0
e
Head tube angle
67,0º
67,0º
67,0º
67,5º
f
Rake
52,0
52,0
52,0
53,0
g
Trail
94,0
94,0
94,0
98,0
h
Wheelbase
1102,0
1122,0
1146,0
1166,0
i
Chainstay length
430,0
430,0
430,0
440,0
j
Bottom bracket drop
18,0
18,0
18,0
38,0
k
Stack height
579,0
579,0
589,0
612,0
l
Reach
378,0
398,0
418,0
433,0
m
Standover height
751,0
751,0
755,0
774,0
x
Bottom bracket height
337,0
337,0
337,0
336,0
y
Front center
673,0
693,0
717,0
729,0
