Canyon Neuron 7 WMN 2021

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,37 kg
Front travel
130mm
Rear travel
130mm

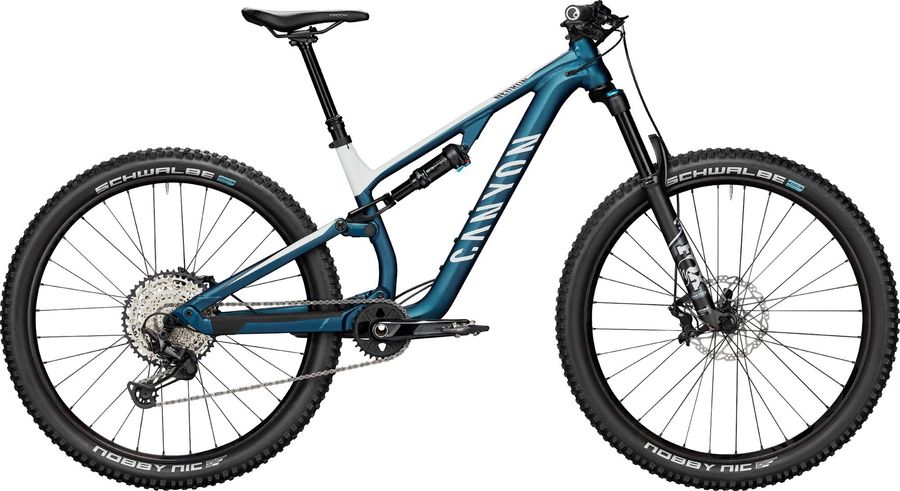

Canyon Neuron 7 WMN 2021

About the Canyon Neuron 7 WMN 2021

The Canyon Neuron 7 WMN 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 14,37 kg.

Features

The Canyon Neuron 7 WMN 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Iridium
Saddle
Ergon SM10 Sport Women
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT54
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano MT611 30T 30
Shifter
Shimano SLX M7100 12s, Clamp: I-Spec EV
Bottom bracket
Shimano BSA BB52
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Iridium / Shimano MT410 S12
Tires
Schwalbe Nobby Nic 2.35"

Geometry

Size XXS XS SM MD
a
Seat tube length
400,0
400,0
400,0
445,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
539,0
559,0
581,0
603,0
d
Head tube length
90,0
90,0
100,0
100,0
e
Head tube angle
67,0º
67,0º
67,0º
67,5º
f
Rake
52,0
52,0
52,0
53,0
g
Trail
94,0
94,0
94,0
98,0
h
Wheelbase
1102,0
1122,0
1146,0
1166,0
i
Chainstay length
430,0
430,0
430,0
440,0
j
Bottom bracket drop
18,0
18,0
18,0
38,0
k
Stack height
579,0
579,0
589,0
612,0
l
Reach
378,0
398,0
418,0
433,0
m
Standover height
751,0
751,0
755,0
774,0
x
Bottom bracket height
337,0
337,0
337,0
336,0
y
Front center
673,0
693,0
717,0
729,0
