Canyon Neuron AL 6.0 SL 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
130mm
Rear travel
130mm

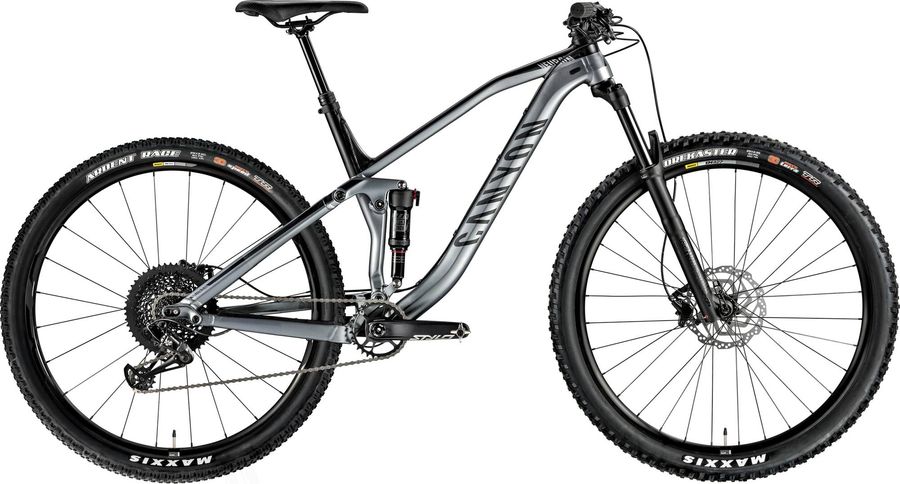

Canyon Neuron AL 6.0 SL 2019

About the Canyon Neuron AL 6.0 SL 2019

The Canyon Neuron AL 6.0 SL 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,4 kg.

Features

The Canyon Neuron AL 6.0 SL 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Selle Italia X-Base
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT10, Disc Mount: Centerlock
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Truvativ Stylo 6K DUB 30T 30
Shifter
SRAM NX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Mavic XM 424 | Shimano MT400 SH11, Rim Material: Aluminium, Inner Width: 24 mm
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XS SM MD LG XL
a
Seat tube length
440,0
440,0
480,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
563,0
587,0
611,0
636,0
661,0
d
Head tube length
85,0
100,0
100,0
120,0
141,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
67,5º
f
Rake
51,0
52,0
53,0
52,0
52,0
g
Trail
95,0
94,0
98,0
99,0
99,0
h
Wheelbase
1124,0
1150,0
1174,0
1201,0
1229,0
i
Chainstay length
434,0
434,0
446,0
446,0
446,0
j
Bottom bracket drop
17,0
17,0
38,0
38,0
38,0
k
Stack height
580,0
594,0
618,0
636,0
655,0
l
Reach
404,0
424,0
441,0
461,0
481,0
m
Standover height
778,0
782,0
805,0
814,0
832,0
x
Bottom bracket height
338,0
338,0
336,0
336,0
336,0
y
Front center
691,0
717,0
731,0
758,0
786,0
