Canyon Neuron AL 7.0 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
130mm

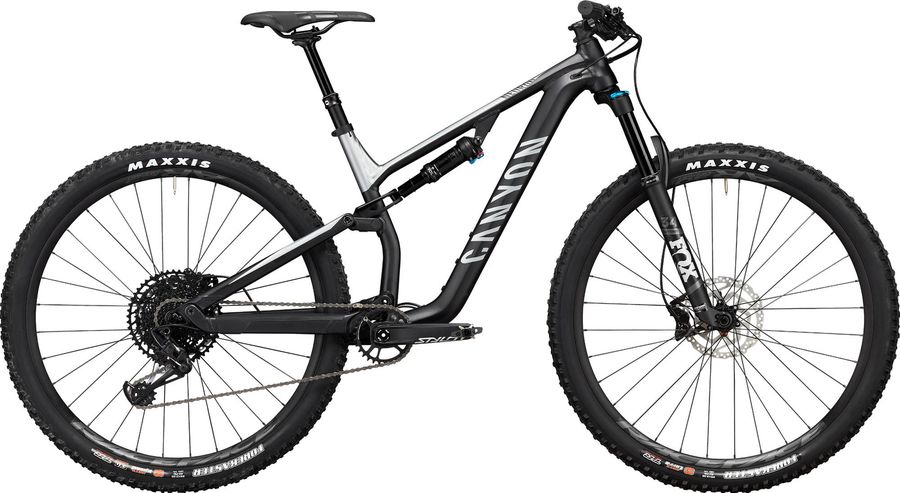

Canyon Neuron AL 7.0 2020

About the Canyon Neuron AL 7.0 2020

The Canyon Neuron AL 7.0 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 14,2 kg.

Features

The Canyon Neuron AL 7.0 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Selle Italia X-Base
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5mm, Width for S and XS frames: 740 mm
Discs
Shimano RT10, Disc Mount: Centerlock
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K DUB 30T 30
Shifter
SRAM NX Eagle Trigger 12s
Bottom bracket
SRAM BSA DUB
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
RaceFace AR25 | Shimano MT510 SH11, Rim Material: Aluminium, Inner Width: 25 mm
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XS SM MD LG XL
a
Seat tube length
400,0
400,0
445,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
559,0
581,0
603,0
626,0
654,0
d
Head tube length
90,0
100,0
100,0
112,0
143,0
e
Head tube angle
-
-
-
-
-
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1122,0
1146,0
1166,0
1190,0
1222,0
i
Chainstay length
430,0
430,0
440,0
440,0
440,0
j
Bottom bracket drop
18,0
18,0
38,0
38,0
38,0
k
Stack height
579,0
589,0
612,0
623,0
651,0
l
Reach
398,0
418,0
433,0
453,0
473,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
356,0
356,0
336,0
336,0
336,0
y
Front center
693,0
717,0
729,0
753,0
785,0
