Canyon Neuron AL 7.0 SL 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,4 kg
Front travel
130mm
Rear travel
130mm

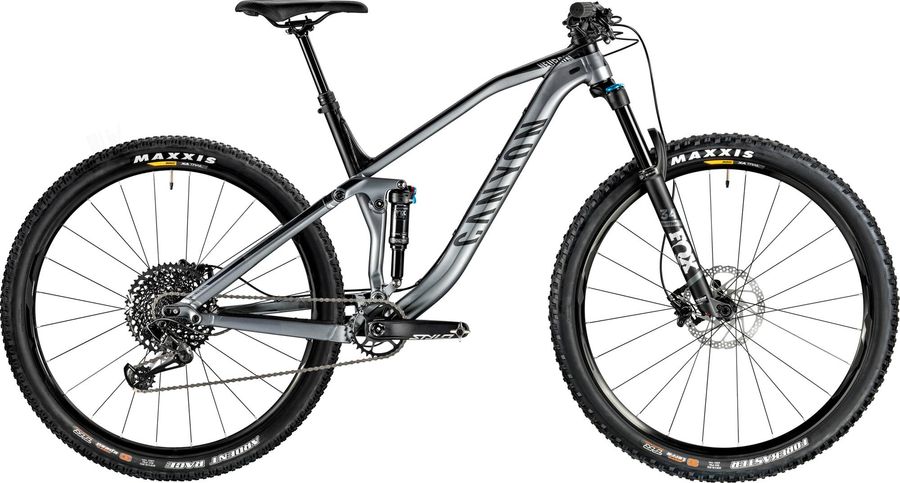

Canyon Neuron AL 7.0 SL 2020

About the Canyon Neuron AL 7.0 SL 2020

The Canyon Neuron AL 7.0 SL 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,4 kg.

Features

The Canyon Neuron AL 7.0 SL 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Selle Italia X-Base
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT56, Disc Mount: 6-Hole
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K DUB 30T 30
Shifter
SRAM NX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Mavic XA Trail XD, Rim Material: Aluminium, Inner Width: 25mm
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XS SM MD LG XL
a
Seat tube length
440,0
440,0
480,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
563,0
587,0
611,0
636,0
661,0
d
Head tube length
85,0
100,0
100,0
120,0
141,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
67,5º
f
Rake
51,0
52,0
53,0
52,0
52,0
g
Trail
95,0
94,0
98,0
99,0
99,0
h
Wheelbase
1124,0
1150,0
1174,0
1201,0
1229,0
i
Chainstay length
434,0
434,0
446,0
446,0
446,0
j
Bottom bracket drop
17,0
17,0
38,0
38,0
38,0
k
Stack height
580,0
594,0
618,0
636,0
655,0
l
Reach
404,0
424,0
441,0
461,0
481,0
m
Standover height
778,0
782,0
805,0
814,0
832,0
x
Bottom bracket height
338,0
338,0
336,0
336,0
336,0
y
Front center
691,0
717,0
731,0
758,0
786,0
