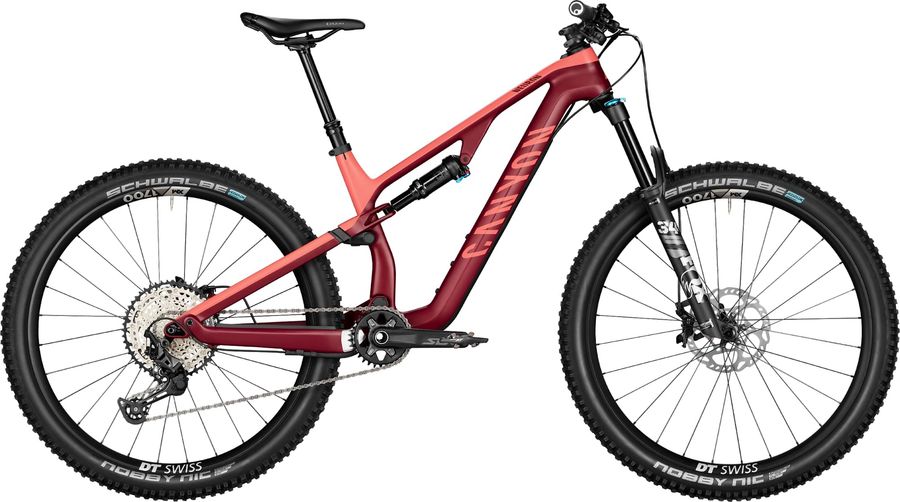

Canyon Neuron CF 8 WMN 2022
The Canyon Neuron CF 8 WMN 2022 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,32 kg
Front travel
140mm
Rear travel
130mm
About the Canyon Neuron CF 8 WMN 2022
The Canyon Neuron CF 8 WMN 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 13,32 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face Ride
|
|---|---|
|
Saddle
|
Ergon SM10 Sport Women
|
|
Seatpost
|
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
|
|
Handlebar
|
Race Face Ride Riserbar, Material: Aluminium, Rise: 10 mm
|
|
Discs
|
Shimano RT70
|
|
Brakes
|
Shimano SLX BR-M7120
444 (BL-M7100) g
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Shimano SLX FC-M7100 12s, Number of chainrings: 1
|
|---|---|
|
Shifter
|
Shimano SLX, 12-speed, 12 speed, tunable RAPIDFIRE PLUS shifting to make sure you never miss a beat.
|
|
Bottom bracket
|
Token BSA
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Frame
|
Canyon Neuron CF, Robust, durable full-carbon frame optimised for stiffness-to-weight. Tapered steerer tube, oversized downtube with integrated protector doubling as a cable channel. Pivot points feature specially sealed industrial bearings for increased durability., Material: Carbon (CF)
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Front suspension
|
Fox 34 Performance
|
|
Rims
|
DT Swiss XM 1700, Rotor Mount: Center Lock | DT Swiss XM 1700 S12, Rotor Mount: Center Lock
|
|---|---|
|
Tires
|
Maxxis Rekon Race Dual Exo 2.35, Wheelsize: 29" | Schwalbe Wicked Will 29"x2.4", Wheelsize: 29"
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
445,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
558,0
|
581,0
|
603,0
|
|
d
Head tube length
|
88,0
|
100,0
|
102,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
67,0º
|
|
f
Rake
|
46,0
|
46,0
|
47,0
|
|
g
Trail
|
104,0
|
104,0
|
108,0
|
|
h
Wheelbase
|
1121,0
|
1146,0
|
1167,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
440,0
|
|
j
Bottom bracket drop
|
18,0
|
18,0
|
38,0
|
|
k
Stack height
|
578,0
|
589,0
|
614,0
|
|
l
Reach
|
398,0
|
418,0
|
433,0
|
|
m
Standover height
|
761,0
|
765,0
|
784,0
|
|
x
Bottom bracket height
|
337,0
|
337,0
|
336,0
|
|
y
Front center
|
692,0
|
717,0
|
730,0
|
