Canyon Neuron CF 9.0 2020

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
12,9 kg
Front travel
130mm
Rear travel
130mm

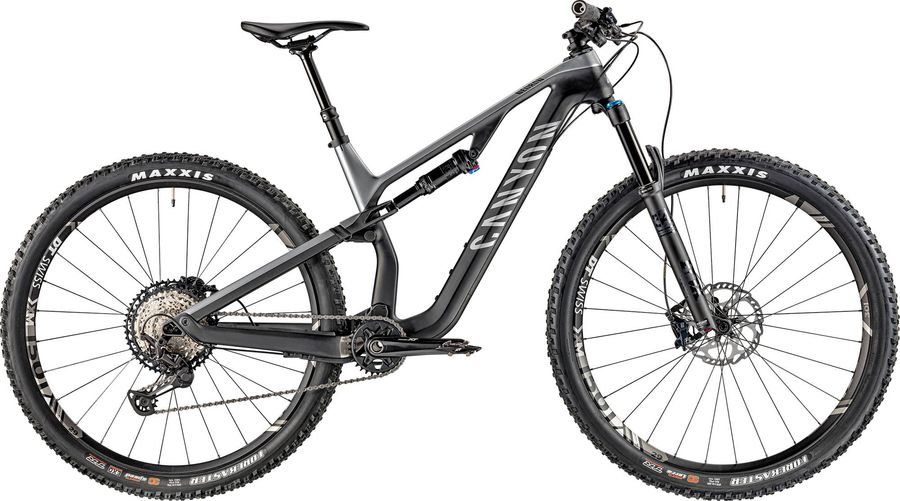

Canyon Neuron CF 9.0 2020

About the Canyon Neuron CF 9.0 2020

The Canyon Neuron CF 9.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,9 kg.

Features

The Canyon Neuron CF 9.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Race Face Ride
Saddle
Iridium Trail
Seatpost
Iridium Dropper
Handlebar
Race Face Ride Riserbar, Material: Aluminium, Rise: 10 mm
Discs
Shimano RT70, Disc Mount: Centerlock
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano Deore XT M8100 30T 30
Shifter
Shimano SLX M7100 12s, Clamp: I-Spec EV
Bottom bracket
Shimano BSA BB-MT800
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
CANYON Neuron CF, Material: Carbon, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance
Wheels
Rims
DT Swiss XM 1501 SH12, Rim Material: Aluminium, Inner Width: 25 mm, Freewheel: Ratchet, Weight: 890 g
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XS SM MD LG XL
a
Seat tube length
400,0
400,0
445,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
558,0
581,0
603,0
626,0
654,0
d
Head tube length
88,0
100,0
102,0
112,0
143,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
67,5º
f
Rake
51,0
52,0
53,0
52,0
52,0
g
Trail
95,0
94,0
98,0
99,0
99,0
h
Wheelbase
1121,0
1146,0
1167,0
1190,0
1222,0
i
Chainstay length
430,0
430,0
440,0
440,0
440,0
j
Bottom bracket drop
18,0
18,0
38,0
38,0
38,0
k
Stack height
578,0
589,0
614,0
623,0
651,0
l
Reach
398,0
418,0
433,0
453,0
473,0
m
Standover height
758,0
762,0
780,0
785,0
796,0
x
Bottom bracket height
337,0
337,0
336,0
336,0
336,0
y
Front center
692,0
717,0
730,0
753,0
785,0
