Canyon Neuron CF 9.0 LTD 2019

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

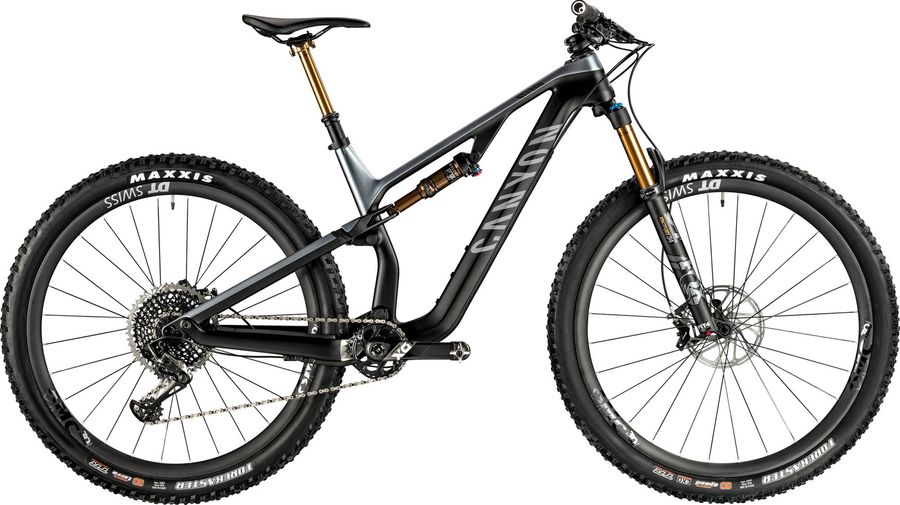

Canyon Neuron CF 9.0 LTD 2019

About the Canyon Neuron CF 9.0 LTD 2019

The Canyon Neuron CF 9.0 LTD 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Neuron CF 9.0 LTD 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V12
Saddle
Iridium Trail
Seatpost
FOX Transfer Factory
Handlebar
Canyon H23 Carbon Riserbar, Material: Carbon, Rise: 15 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM X01 Eagle DUB 30T, Material: Carbon 30
Shifter
SRAM X01 Eagle Trigger 12s
Bottom bracket
SRAM BSA DUB
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Neuron CF, Material: Carbon, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XMC 1200 XD, Rim Material: Carbon, Inner Width: 30 mm, Freewheel: Ratchet, Weight: 835 g
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XS SM MD LG XL
a
Seat tube length
400,0
400,0
445,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
558,0
581,0
603,0
626,0
654,0
d
Head tube length
88,0
100,0
102,0
112,0
143,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
67,5º
f
Rake
51,0
52,0
53,0
52,0
52,0
g
Trail
95,0
94,0
98,0
99,0
99,0
h
Wheelbase
1121,0
1146,0
1167,0
1190,0
1222,0
i
Chainstay length
430,0
430,0
440,0
440,0
440,0
j
Bottom bracket drop
18,0
18,0
38,0
38,0
38,0
k
Stack height
578,0
589,0
614,0
623,0
651,0
l
Reach
398,0
418,0
433,0
453,0
473,0
m
Standover height
785,0
762,0
780,0
785,0
796,0
x
Bottom bracket height
337,0
337,0
336,0
336,0
336,0
y
Front center
692,0
717,0
730,0
753,0
785,0
