Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
12,1 kg
Front travel
130mm
Rear travel
130mm

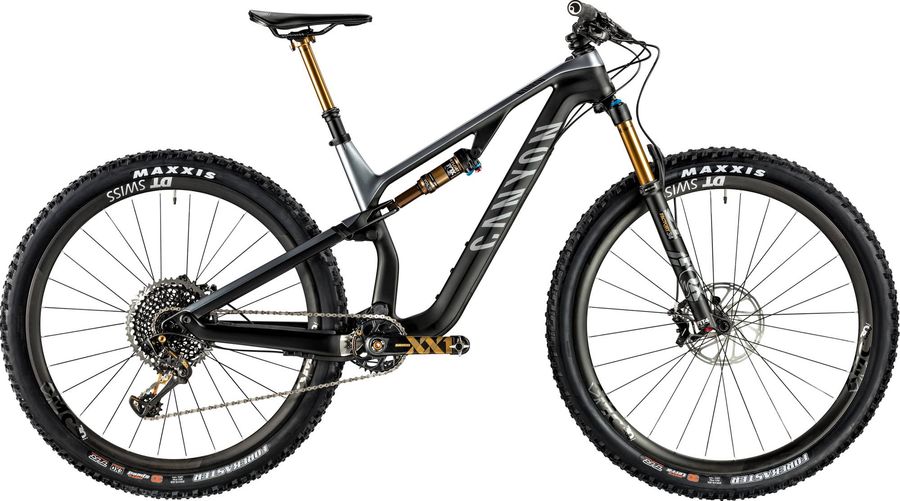

About the Canyon Neuron CF 9.0 Unlimited 2019
The Canyon Neuron CF 9.0 Unlimited 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,1 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon GA20
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Canyon V12
|
|---|---|
|
Saddle
|
Fizik Taiga
|
|
Headset
|
Canyon | Acros
|
|
Seatpost
|
FOX Transfer Factory
|
|
Handlebar
|
Canyon H23 Carbon Riserbar, Material: Carbon, Rise: 15 mm
|
|
Discs
|
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
|
|
Brakes
|
SRAM Ultimate
|
|
Crankset
|
SRAM XX1 Eagle DUB 30T, Material: Carbon 30
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle Trigger 12s
|
|
Bottom bracket
|
SRAM BSA DUB
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Frame
|
Canyon Neuron CF, Material: Carbon, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
|
|---|---|
|
Front suspension
|
Fox 34 Factory
|
|
Rear suspension
|
Fox Float DPS Factory
|
|
Rims
|
Carbon DT SWISS XMC 1200 SPLINE
|
|---|---|
|
Tires
|
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
445,0
|
480,0
|
520,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
558,0
|
581,0
|
603,0
|
626,0
|
654,0
|
|
d
Head tube length
|
88,0
|
100,0
|
102,0
|
112,0
|
143,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
51,0
|
52,0
|
53,0
|
52,0
|
52,0
|
|
g
Trail
|
95,0
|
94,0
|
98,0
|
99,0
|
99,0
|
|
h
Wheelbase
|
1121,0
|
1146,0
|
1167,0
|
1190,0
|
1222,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
440,0
|
440,0
|
440,0
|
|
j
Bottom bracket drop
|
18,0
|
18,0
|
38,0
|
38,0
|
38,0
|
|
k
Stack height
|
578,0
|
589,0
|
614,0
|
623,0
|
651,0
|
|
l
Reach
|
398,0
|
418,0
|
433,0
|
453,0
|
473,0
|
|
m
Standover height
|
758,0
|
762,0
|
780,0
|
785,0
|
796,0
|
|
x
Bottom bracket height
|
337,0
|
337,0
|
336,0
|
336,0
|
336,0
|
|
y
Front center
|
692,0
|
717,0
|
730,0
|
753,0
|
785,0
|
