Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

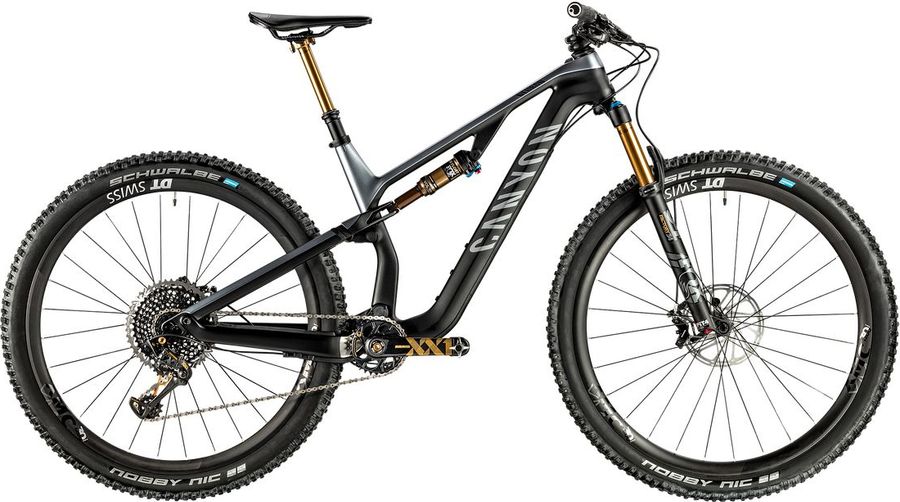

About the Canyon Neuron CF 9.0 Unlimited US 2019
The Canyon Neuron CF 9.0 Unlimited US 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain. Its features include dropper seatpost e hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon GA20
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Canyon V12, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Progressive and torsionally stiff design thanks to asymmetric wall thicknesses, Compliant with Canyon Category 4 testing standards
|
|---|---|
|
Saddle
|
Fizik Taiga
|
|
Headset
|
Canyon | Acros
|
|
Seatpost
|
Fox Factory Transfer Post
|
|
Handlebar
|
Canyon H21 Flat CF, Width: 740 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight carbon construction and balanced geometry, Compliant with Canyon Category 3 testing standards
|
|
Brakes
|
SRAM Guide Ultimate
Hydraulic
360 g
|
|
|
|
|
Crankset
|
SRAM XX1 EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle Trigger, 12s, Carbon fibre, 12-speed, X-Actuation
|
|
Bottom bracket
|
SRAM DUB BSA
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Frame
|
Canyon Neuron CF
|
|---|---|
|
Rear suspension
|
Fox Float DPS Factory Kashima
|
|
Front suspension
|
RockShox Pike RC
Solo Air
1835 g
|
|
|
|
|
Rims
|
Carbon DT SWISS XMC 1200 SPLINE
|
|---|---|
|
Tires
|
Maxxis Forekaster, 2.35 | Maxxis Forekaster, 2.35
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
445,0
|
480,0
|
520,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
618,5
|
638,0
|
680,9
|
698,3
|
724,3
|
|
d
Head tube length
|
88,0
|
100,0
|
102,0
|
112,0
|
143,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
52,0
|
51,0
|
52,0
|
52,0
|
52,0
|
|
g
Trail
|
94,0
|
95,0
|
99,0
|
99,0
|
99,0
|
|
h
Wheelbase
|
1121,0
|
1145,0
|
1166,0
|
1190,0
|
1222,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
440,0
|
440,0
|
440,0
|
|
j
Bottom bracket drop
|
18,0
|
18,0
|
38,0
|
38,0
|
38,0
|
|
k
Stack height
|
577,0
|
588,0
|
613,0
|
622,0
|
651,0
|
|
l
Reach
|
398,0
|
418,0
|
433,0
|
453,0
|
473,0
|
|
m
Standover height
|
757,6
|
762,0
|
780,0
|
784,7
|
795,7
|
|
x
Bottom bracket height
|
337,0
|
337,0
|
336,0
|
336,0
|
336,0
|
|
y
Front center
|
692,0
|
716,0
|
729,0
|
753,0
|
785,0
|
